FS300R12OE4 Datasheet - Infineon

FS300R12OE4 - IGBT

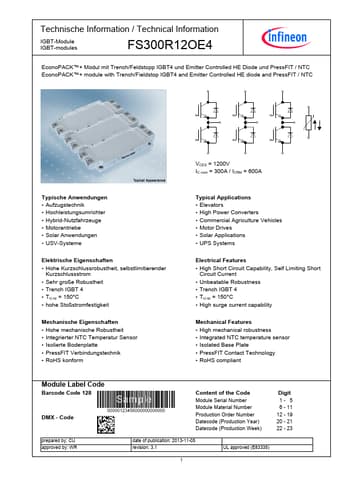

Technische Information / Technical Information IGBT-Module IGBT-modules FS300R12OE4 EconoPACK™+ Modul mit Trench/Feldstopp IGBT4 und Emitter Controlled HE Diode und PressFIT / NTC EconoPACK™+ module with Trench/Fieldstop IGBT4 and Emitter Controlled HE diode and PressFIT / NTC VCES = 1200V IC nom = 300A / ICRM = 600A Typische Anwendungen Aufzugstechnik Hochleistungsumrichter Hybrid-Nutzfahrzeuge Motorantriebe Solar Anwendungen USV-

FS300R12OE4 Features

* High Short Circuit Capability, Self Limiting Short Circuit Current

* Unbeatable Robustness

* Trench IGBT 4

* Tvj op = 150°C

* High surge current capability Mechanical Features

* High mechanical robustness

* Integrated NTC temperature sensor
