FS30AS-2 Datasheet - Mitsubishi Electric Semiconductor

FS30AS-2 N-Channel Power MOSFET

MITSUBISHI Nch POWER MOSFET FS2KM-12 HIGH-SPEED SWITCHING USE FS2KM-12 OUTLINE DRAWING 10 ± 0.3 6.5 ± 0.3 3 ± 0.3 Dimensions in mm 2.8 ± 0.2 15 ± 0.3 φ 3.2 ± 0.2 14 ± 0.5 3.6 ± 0.3 1.1 ± 0.2 1.1 ± 0.2 0.75 ± 0.15 0.75 ± 0.15 2.54 ± 0.25 2.54 ± 0.25 4.5 ± 0.2 q GATE w DRAIN e SOURCE 1 2 3 2.6 ± 0.2 w ¡VDSS 600V ¡rDS (ON) (MAX) 6.4Ω ¡ID 2A ¡Viso 2000V q e TO-220FN APPLICATION SMPS, DC-DC Converter, battery charger, power supply of printer, copier, HDD, FDD, TV, VCR, personal.

FS30AS-2 Datasheet (36.62 KB)

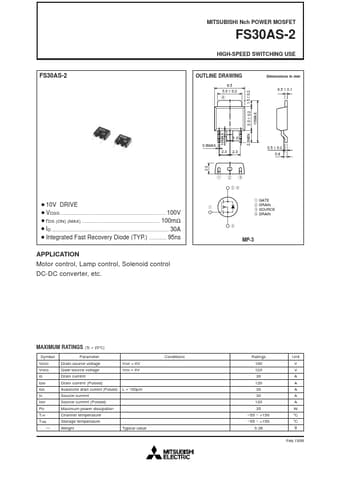

Preview of FS30AS-2 PDF

Datasheet Details

Part number:

FS30AS-2

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

36.62 KB

Description:

N-channel power mosfet.
