HYS72D64000GU-8-A - 2.5 V 184-pin Unbuffered DDR-I SDRAM Modules

SDRAM Technology All part numbers end with a place code, designating the silicon-die revision.

Reference information available on request.

Example: HYS 72D64000GU-8-A, indicating Rev.A dies are used for the SDRAM components.

The Compliance Code is printed on the module labels and describes the spee

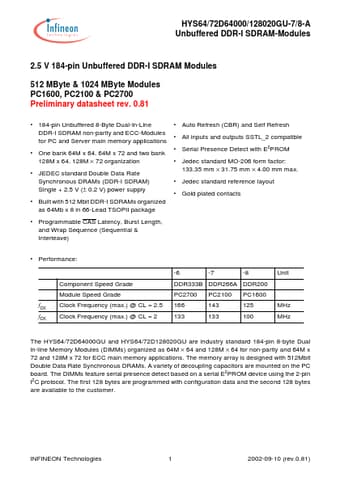

HYS64/72D64000/128020GU-7/8-A Unbuffered DDR-I SDRAM-Modules 2.5 V 184-pin Unbuffered DDR-I SDRAM Modules 512 MByte & 1024 MByte Modules PC1600, PC2100 & PC2700 Preliminary datasheet rev.

0.81 184-pin Unbuffered 8-Byte Dual-In-Line DDR-I SDRAM non-parity and ECC-Modules for PC and Server main memory applications One bank 64M x 64, 64M x 72 and two bank 128M x 64, 128M × 72 organization JEDEC standard Double Data Rate Synchronous DRAMs (DDR-I SDRAM) Single + 2.5 V (

HYS72D64000GU-8-A Features

* D15 CKE: SDRAMs D0 - D7 WE: SDRAMs D0 - D15 Notes: 1. DQ-to-I/O wiring is shown as rec
