ICE3BR2280JZ-T Datasheet (Infineon) - Off-Line SMPS Current Mode Controller

ICE3BR2280JZ-T, Off-Line SMPS Current Mode Controller

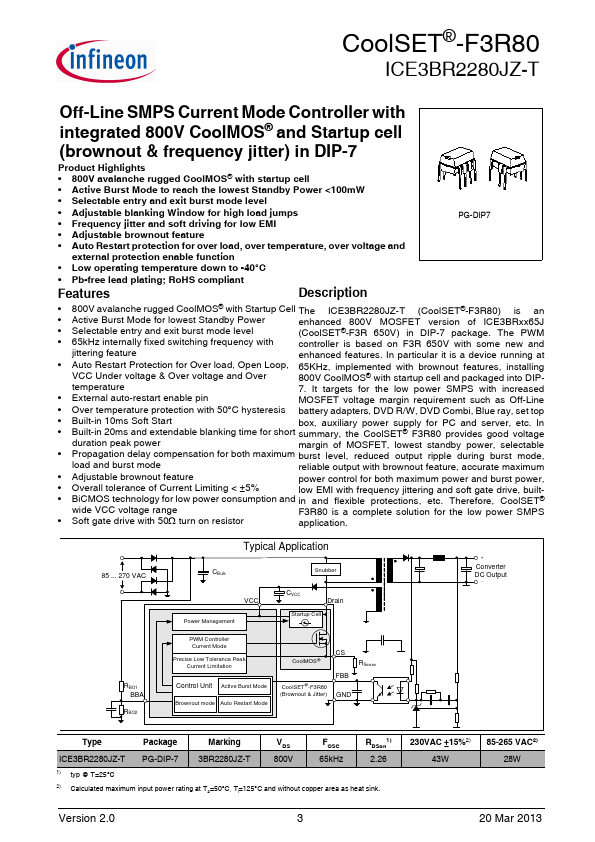

* 800V avalanche rugged CoolMOS® with Startup Cell The ICE3BR2280JZ-T (CoolSET®-F3R80) is an * Active Burst Mode for lowest Standby Power enhanced 800V MOSFET version of ICE3BRxx65J * Selectable entry and exit burst mode level (CoolSET®-F3R 650V) in DIP-7 package.

The PW

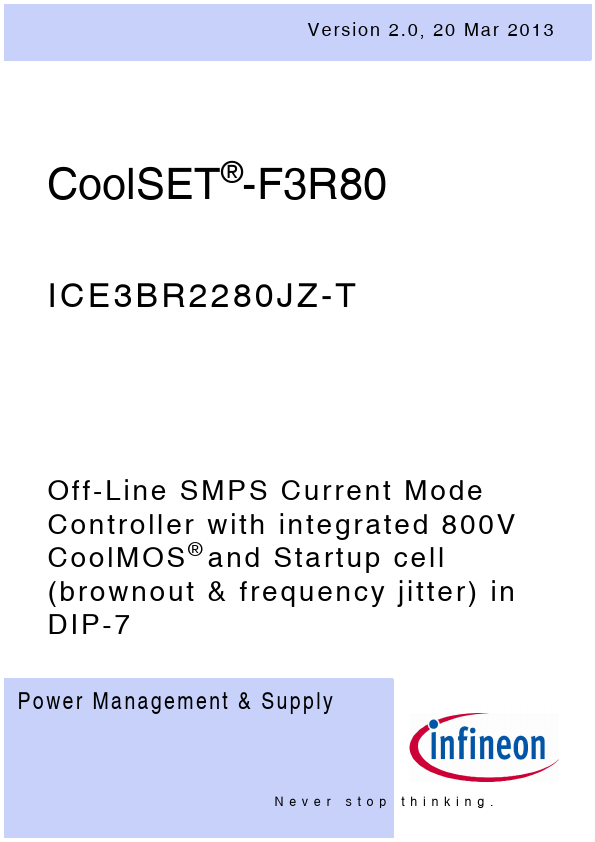

Version 2.0, 20 Mar 2013 CoolSET®-F3R80 ICE3BR2280JZ-T Off-Line SMPS Current Mode Controller with integrated 800V CoolMOS® and Startup cell (brownout & frequency jitter) in DIP-7 Power Management & Supply Never stop thinking.

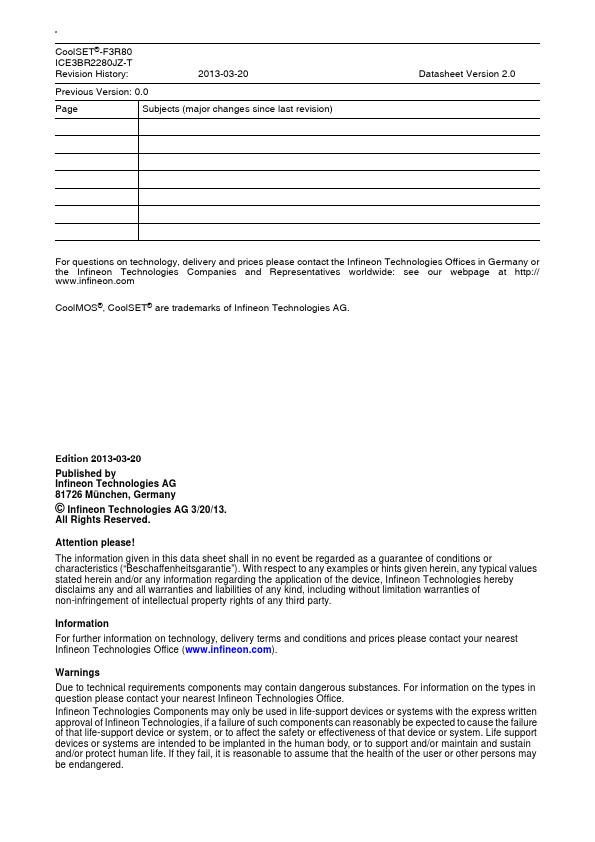

3 CoolSET®-F3R80 ICE3BR2280JZ-T Revision History: 2013-03-20 Previous Version: 0.0 Page Subjects (major changes since last revision) Datasheet Version 2.0 For questions on technology, delivery and prices please contact the Infineon Technologies Offices in Germany or
