IDC21D120T6M Diode

📥 Download Datasheet Datasheet Preview Page 1

Description

IDC21D120T6M Diode EMCON 4 Medium Power Chip .
AQL 0,65 for visual inspection according to failure catalog Electrostatic Discharge Sensitive Device according to MIL-STD 883 Test-Normen Villach/Prü.

📥 Download Datasheet

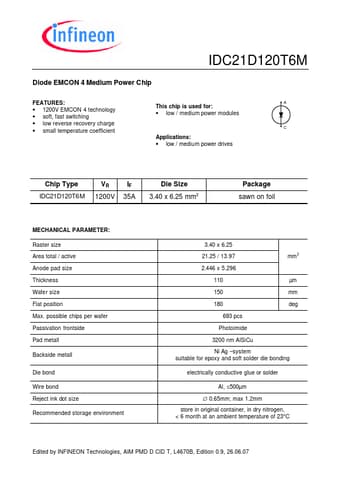

Preview of IDC21D120T6M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* 1200V EMCON 4 technology
* soft, fast switching This chip is used for:
* low / medium power modules A
* low reverse recovery charge

Applications

* low / medium power drives Chip Type VR IF IDC21D120T6M 1200V 35A Die Size 3.40 x 6.25 mm2 Package sawn on foil MECHANICAL PARAMETER: Raster size Area total / active Anode pad size Thickness Wafer size Flat position Max. possible chips per wafer Passivation frontside Pad metall Bac
