IFF450B12ME4P_B11 Datasheet - Infineon

IFF450B12ME4P_B11 IGBT

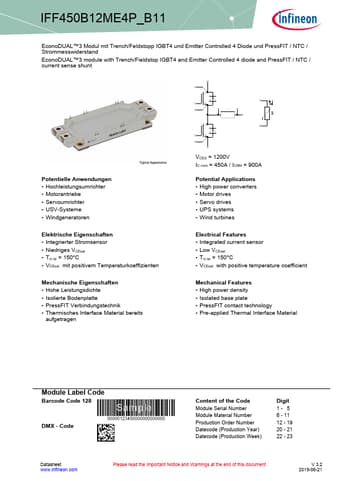

IFF450B12ME4P_B11 EconoDUAL™3 Modul mit Trench/Feldstopp IGBT4 und Emitter Controlled 4 Diode und PressFIT / NTC / Strommesswiderstand EconoDUAL™3 module with Trench/Fieldstop IGBT4 and Emitter Controlled 4 diode and PressFIT / NTC / current sense shunt J Potentielle Anwendungen Hochleistungsumrichter Motorantriebe Servoumrichter USV-Systeme Windgeneratoren Elektrische Eigenschaften Integrierter Stromsensor Niedriges VCEsat .

IFF450B12ME4P_B11 Features

* Integrated current sensor

* Low VCEsat

* Tvj op = 150°C

* VCEsat with positive temperature coefficient Mechanical Features

* High power density

* Isolated base plate

* PressFIT contact technology

* Pre-applied Thermal Interface Mater

IFF450B12ME4P_B11-Infineon.pdf
