IFX1051 - Industrial High Speed CAN-FD Transceiver

IFX1051 Description

IFX1051 Industrial High Speed CAN-FD Transceiver 1 Overview .
The IFX1051 is a transceiver designed for HS CAN networks in industrial applications.

IFX1051 Features

* Compliant to ISO 11898-2
* Wide common mode range for electromagnetic immunity (EMI)
* Very low electromagnetic emission (EME)
* Excellent ESD robustness: 10 kV HBM
* Guaranteed loop delay symmetry to support CAN FD data frames up to 2 MBit/s
* Suita

IFX1051 Applications

* VIO input for voltage adaption to the microcontroller supply
* Extended supply range on VCC and VIO supply
* CAN short circuit proof to ground, battery and VCC
* TxD time-out function with very long TxD time-out timing: ≥ 4.5 ms
* Low CAN bus leakage current

📥 Download Datasheet

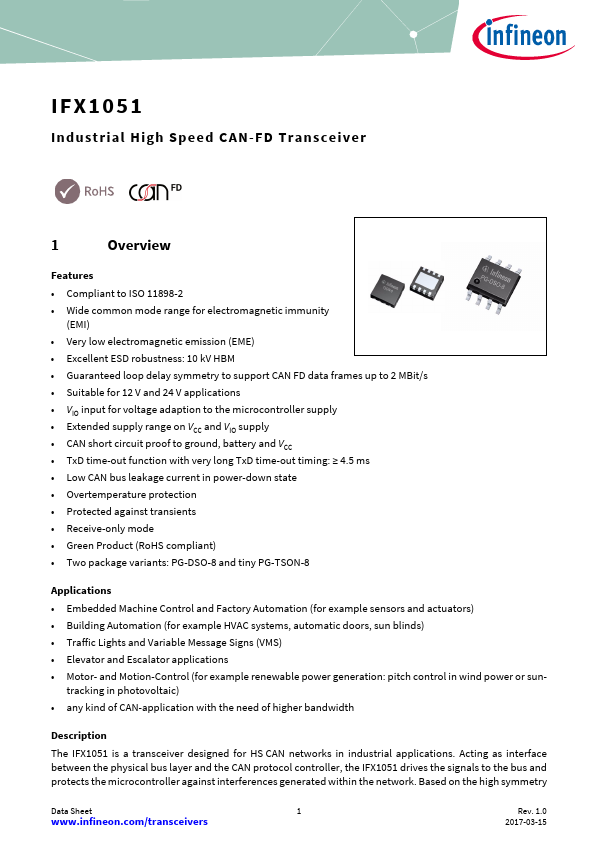

Preview of IFX1051 PDF

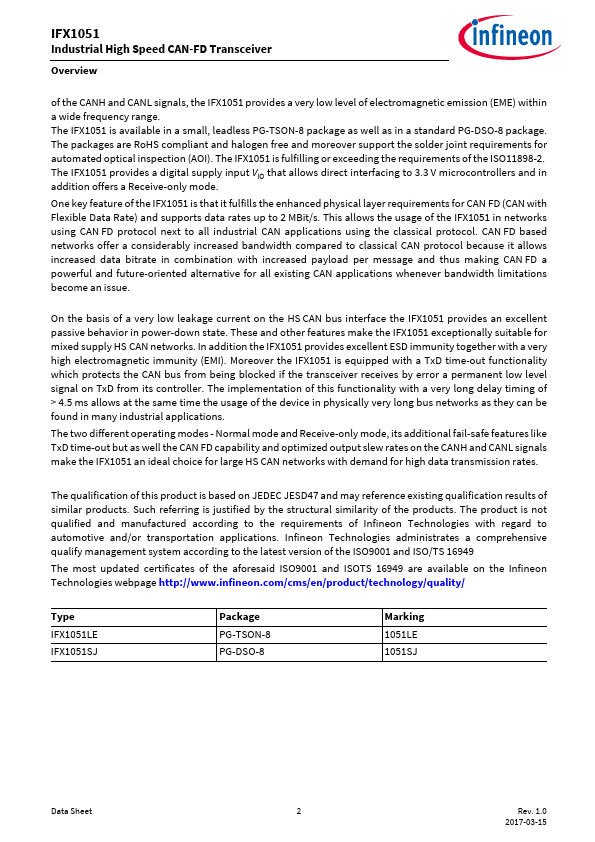

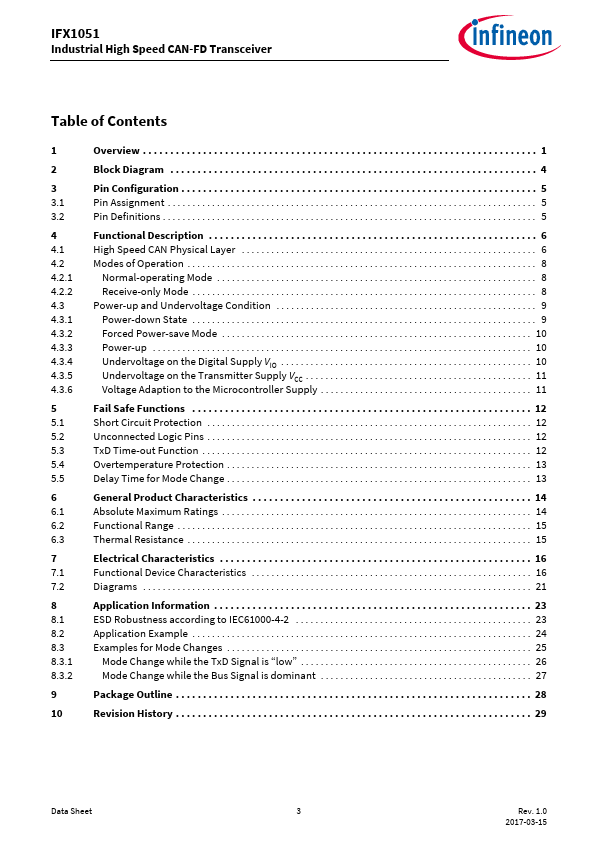

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IFX1051
Manufacturer
Infineon ↗
File Size
548.79 KB
Datasheet
IFX1051-Infineon.pdf
Description
Industrial High Speed CAN-FD Transceiver
