IGLT65R110B2, 650V Bidirectional switch

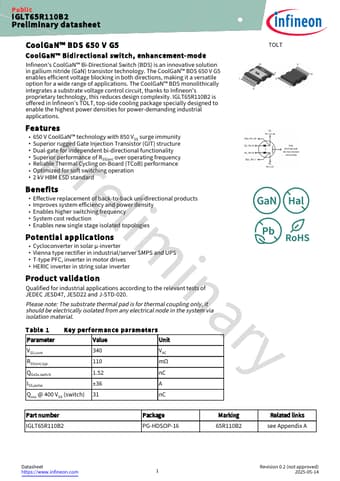

Public IGLT65R110B2 Preliminary datasheet CoolGaN™ BDS 650 V G5 CoolGaN™ Bidirectional switch, enhancement‑mode Infineon's CoolGaN™ Bi‑Directional Sw.
1 Maxi.

datasheet Preview Page 1 from Datasheet4u.com

IGLT65R110B2-Infineon.pdf

IGLT65R110B2 Datasheet Preview — Preview of IGLT65R110B2 PDF

Datasheet Details

Part number:

IGLT65R110B2

Manufacturer:

Infineon ↗

File Size:

1.27 MB

Description:

650V Bidirectional switch

Features

* 650 V CoolGaN™ technology with 850 VSS surge immunity
* Superior rugged Gate Injection Transistor (GIT) structure
* Dual‑gate for independent bi‑directional functionality
* Superior performance of RSS(on) over operating frequency
* Reliable Thermal Cycling o

Applications

* The CoolGaN™ BDS monolithically integrates a substrate voltage control circuit, thanks to Infineon's proprietary technology, this reduces design complexity. IGLT65R110B2 is offered in Infineon’s TOLT, top‑side cooling package specially designed to enable the highest power densities for power‑demand
