IKFW60N65ES5 high speed soft switching IGBT

📥 Download Datasheet Datasheet Preview Page 1

Description

IKFW60N65ES5 TRENCHSTOPTM 5 Advanced Isolation TRENCHSTOPTM 5 high speed soft switching IGBT copacked with full current rated RAPID 1 fast and soft.

📥 Download Datasheet

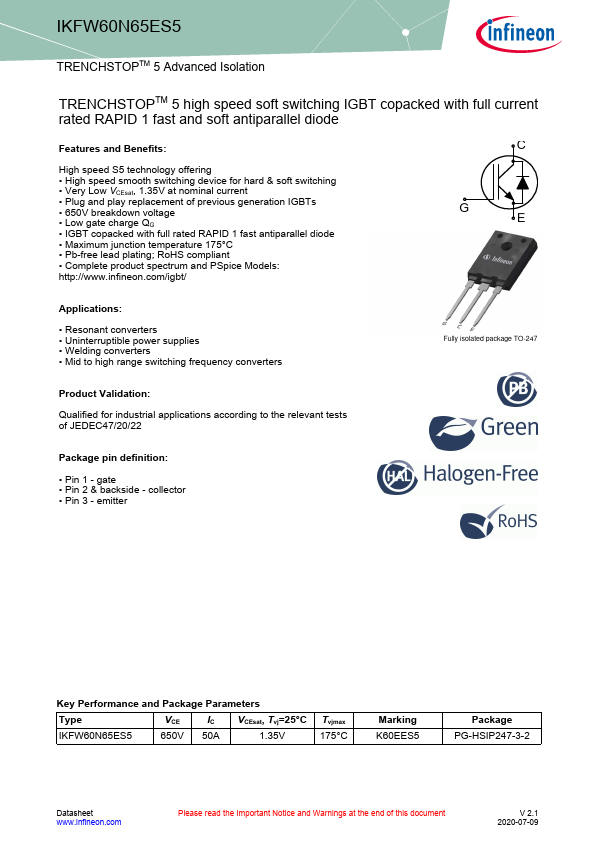

Preview of IKFW60N65ES5 PDF

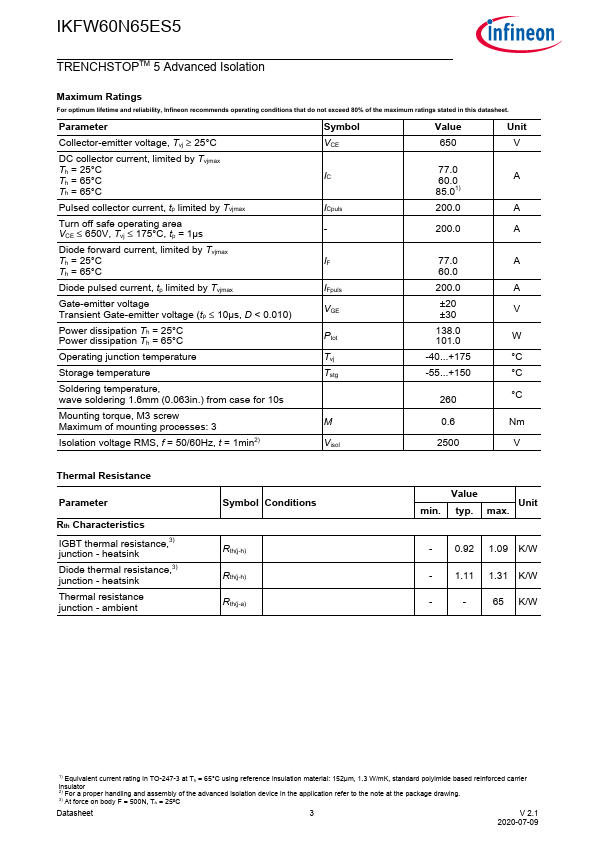

datasheet Preview Page 2 datasheet Preview Page 3

Features

* C High speed S5 technology offering
* High speed smooth switching device for hard & soft switching
* Very Low VCEsat, 1.35V at nominal current
* Plug and play replacement of previous generation IGBTs
* 650V breakdown voltage
* Low gate charge QG
* I

Applications

* Resonant converters
* Uninterruptible power supplies
* Welding converters
* Mid to high range switching frequency converters Fully isolated package TO-247 Product Validation: Qualified for industrial applications according to the relevant tests of JEDEC47/20/22
