IKW40N65F5A, IGBT

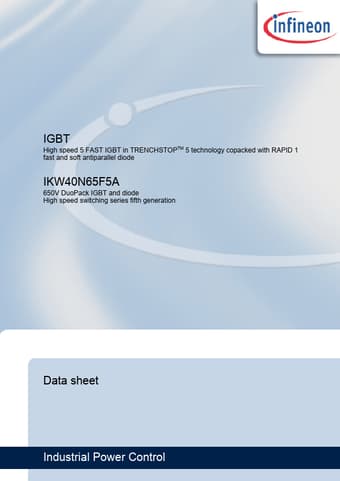

IGBT High speed 5 FAST IGBT in TRENCHSTOPTM 5 technology copacked with RAPID 1 fast and soft antiparallel diode IKW40N65F5A 650V DuoPack IGBT and diod.

datasheet Preview Page 1 from Datasheet4u.com

IKW40N65F5A-Infineon.pdf

IKW40N65F5A Datasheet Preview — Preview of IKW40N65F5A PDF

Datasheet Details

Part number:

IKW40N65F5A

Manufacturer:

Infineon ↗

File Size:

2.08 MB

Description:

IGBT

Features

* C High speed F5 technology offering
* Best-in-Class efficiency in hard switching and resonant topologies
* 650V breakdown voltage
* Low gate charge QG
* IGBT copacked with RAPID 1 fast and soft antiparallel diode
* Maximum junction temperature 175°C

Applications

* Battery charger
* DC/DC converter Package pin definition:
* Pin 1 - gate
* Pin 2 & backside - collector
* Pin 3 - emitter 12 3 Key Performance and Package Parameters Type VCE IC VCEsat, Tvj=25°C IKW40N65F5A 650V 40A 1.6V Tvjmax 175°C Marking K40EF5
