IKW20N60T Datasheet - Infineon Technologies

IKW20N60T, IGBT

IKW20N60T TRENCHSTOP™ Series Low Loss DuoPack : IGBT in TRENCHSTOP™ and Fieldstop technology with soft, fast recovery anti-parallel Emitter Controlled.

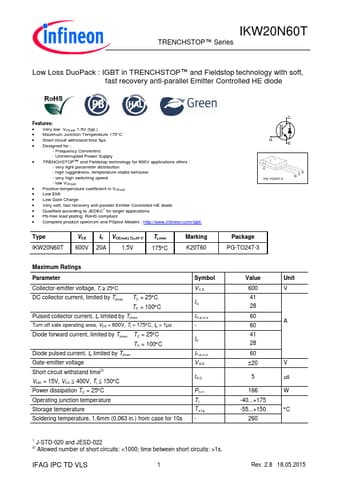

datasheet Preview Page 1 from Datasheet4u.com

IKW20N60T_InfineonTechnologies.pdf

IKW20N60T Datasheet Preview — Preview of IKW20N60T PDF

Datasheet Details

Part number:

IKW20N60T

Manufacturer:

Infineon ↗ Technologies

File Size:

481.41 KB

Description:

IGBT

Features

* Very low VCE(sat) 1.5V (typ. )
* Maximum Junction Temperature 175°C
* Short circuit withstand time 5s
* Designed for : - Frequency Converters - Uninterrupted Power Supply

Applications

* offers : - very tight parameter distribution - high ruggedness, temperature stable behavior - very high switching speed - low VCE(sat)
* Positive temperature coefficient in VCE(sat)
* Low EMI
* Low Gate Charge
* Very soft, fast recovery anti-parallel Emitter Controlled HE diode
