IKW30N65EL5, IGBT

IKW30N65EL5 Low VCE(sat) series fifth generation Low VCE(sat) IGBT in TRENCHSTOPTM 5 technology copacked with RAPID 1 fast and soft antiparallel dio.

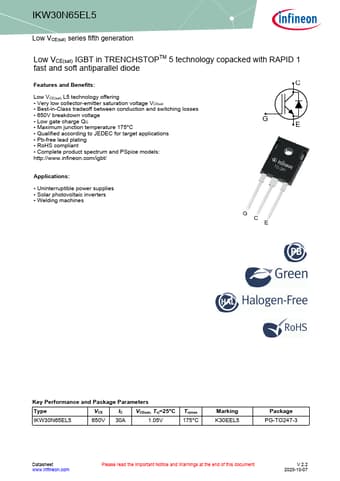

datasheet Preview Page 1 from Datasheet4u.com

IKW30N65EL5-Infineon.pdf

IKW30N65EL5 Datasheet Preview — Preview of IKW30N65EL5 PDF

Datasheet Details

Part number:

IKW30N65EL5

Manufacturer:

Infineon ↗

File Size:

1.71 MB

Description:

IGBT

Features

* C Low VCE(sat) L5 technology offering
* Very low collector-emitter saturation voltage VCEsat
* Best-in-Class tradeoff between conduction and switching losses
* 650V breakdown voltage
* Low gate charge QG
* Maximum junction temperature 175°C
* Qualif

Applications

* Pb-free lead plating
* RoHS compliant
* Complete product spectrum and PSpice models: http://www. infineon. com/igbt/ G E Applications:
* Uninterruptible power supplies
* Solar photovoltaic inverters
* Welding machines G C E Key Performance and Pack
