IKW15N120CS7 Description

IKW15N120CS7 Short circuit rugged 1200 V TRENCHSTOP™ IGBT 7 technology Short circuit rugged 1200 V TRENCHSTOP™ IGBT 7 technology copacked with soft a.
C Type IKW15N120CS7 G Package PG-TO247-3 E Marking K15MCS7 Datasheet www.

IKW15N120CS7 Features

* VCE=1200 V
* IC=15 A
* IGBT co-packed with full current, soft and low Qrr diode
* Low saturation voltage VCE(sat) = 2.0 V at Tvj=175 °C
* Optimized for hard switching topologies (2-L inverter, 3-L NPC T-type, )
* Short circuit ruggedness 8 µsec

IKW15N120CS7 Applications

* Industrial Drives
* Industrial Power Supplies
* Solar Inverters Product validation

📥 Download Datasheet

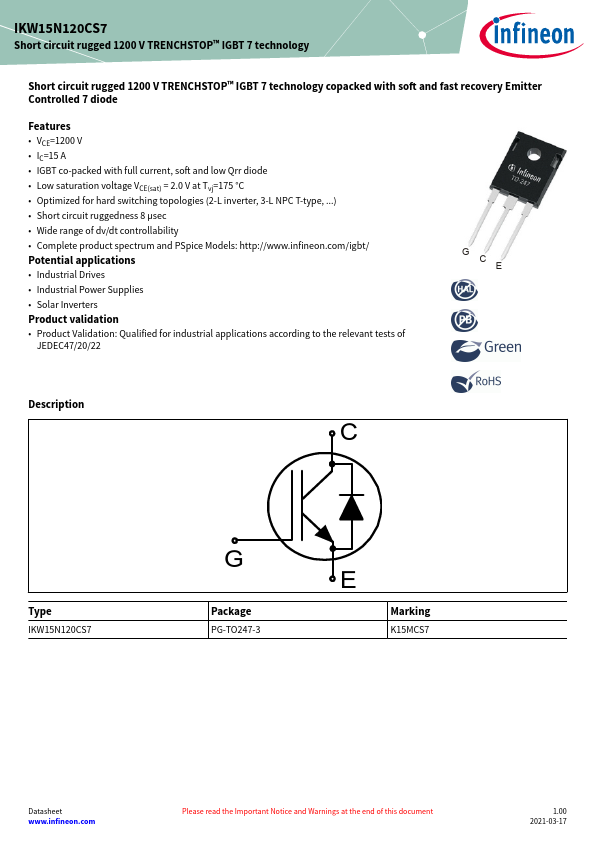

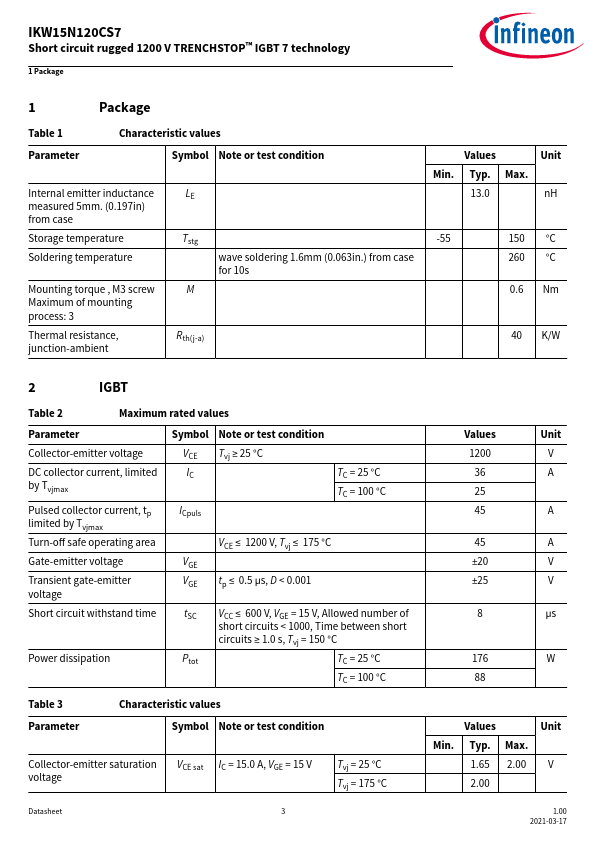

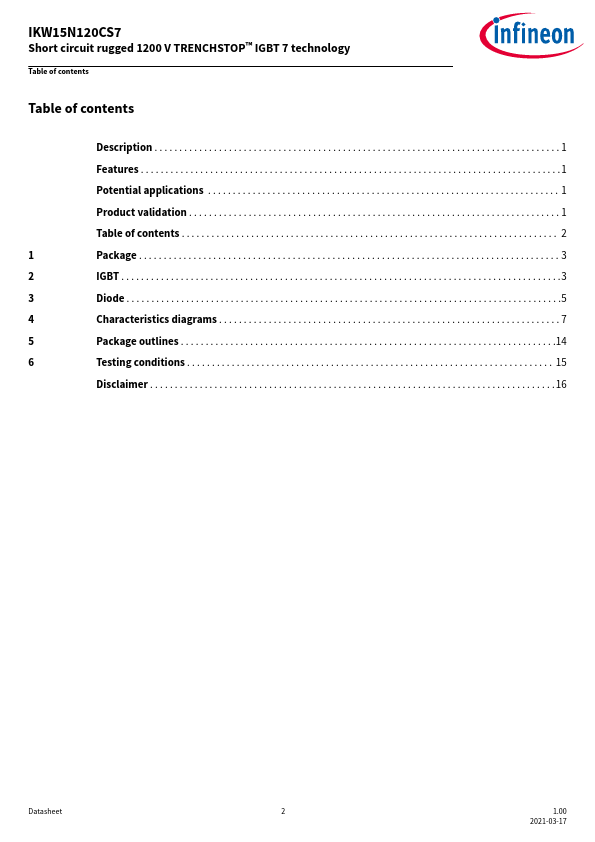

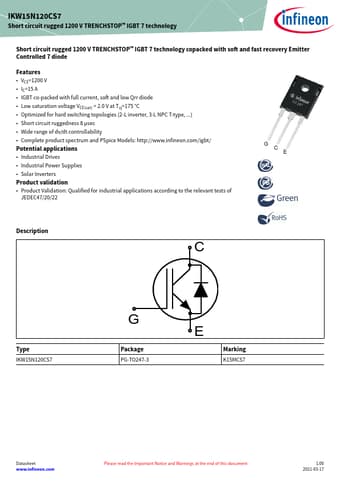

IKW15N120CS7 Datasheet Preview — Preview of IKW15N120CS7 PDF

Datasheet Details

Part number: IKW15N120CS7
Manufacturer: Infineon ↗
File Size: 1.96 MB
Datasheet: IKW15N120CS7-Infineon.pdf
Description: 1200V IGBT
