IKY100N120CH7 High speed 1200V IGBT

Infineon

Description

IKY100N120CH7 High speed 1200 V TRENCHSTOP™ IGBT 7 Technology High speed 1200 V TRENCHSTOP™ IGBT 7 Technology co-packed with full rated current, soft.
Copyright © Infineon Techn Type IKY100N120CH7 Package PG-TO247-4-PLUS-NN5.

📥 Download Datasheet

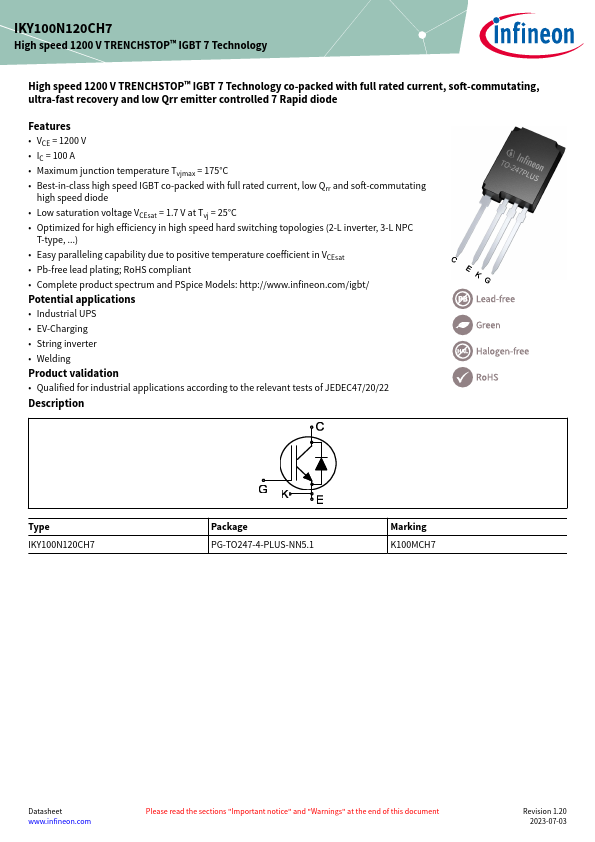

IKY100N120CH7 Datasheet Preview — Preview of IKY100N120CH7 PDF

Datasheet Specifications

Part number: IKY100N120CH7
Manufacturer: Infineon ↗
File Size: 1.68 MB
Datasheet: IKY100N120CH7-Infineon.pdf
Description: High speed 1200V IGBT

Features

* VCE = 1200 V
* IC = 100 A
* Maximum junction temperature Tvjmax = 175°C
* Best-in-class high speed IGBT co-packed with full rated current, low Qrr and soft-commutating high speed diode
* Low saturation voltage VCEsat = 1.7 V at Tvj = 25°C
* Optimiz

Applications

* 2021-10-27 restricted
* Industrial UPS
* EV-Charging
* String inverter
* Welding Product validation
