IKY120N120CH7 - High speed 1200V IGBT

Infineon

IKY120N120CH7 Datasheet Preview — Preview of IKY120N120CH7 PDF

Datasheet Details

Part number	IKY120N120CH7
Manufacturer	Infineon ↗
File Size	1.71 MB
Description	High speed 1200V IGBT
Datasheet	IKY120N120CH7-Infineon.pdf

IKY120N120CH7 Product details

Description

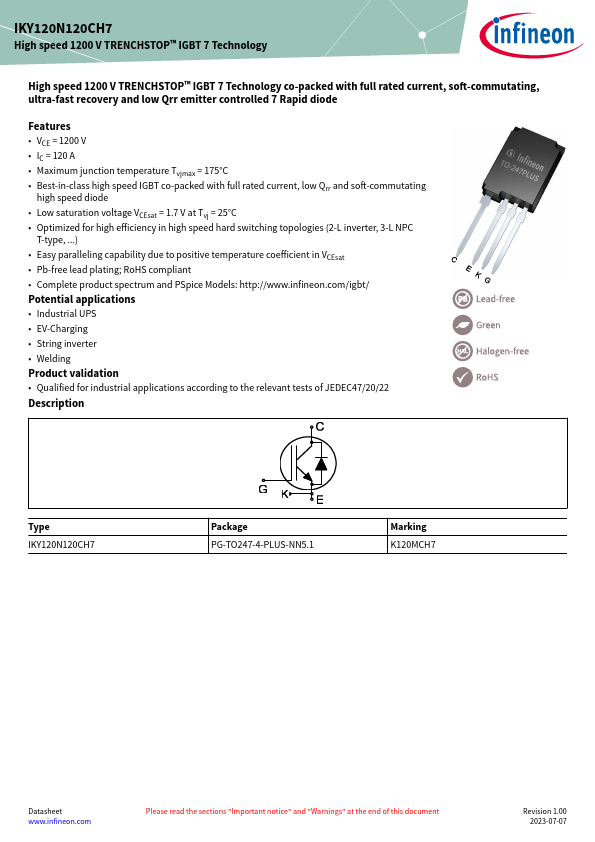

Copyright © Infineon Techn Type IKY120N120CH7 Package PG-TO247-4-PLUS-NN5.1 Marking K120MCH7 Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.00 2023-07-07 IKY120N120CH7 High speed 1200 V TRENCHSTOP™ IGBT 7 Technology Table of contents Table of contents Description .

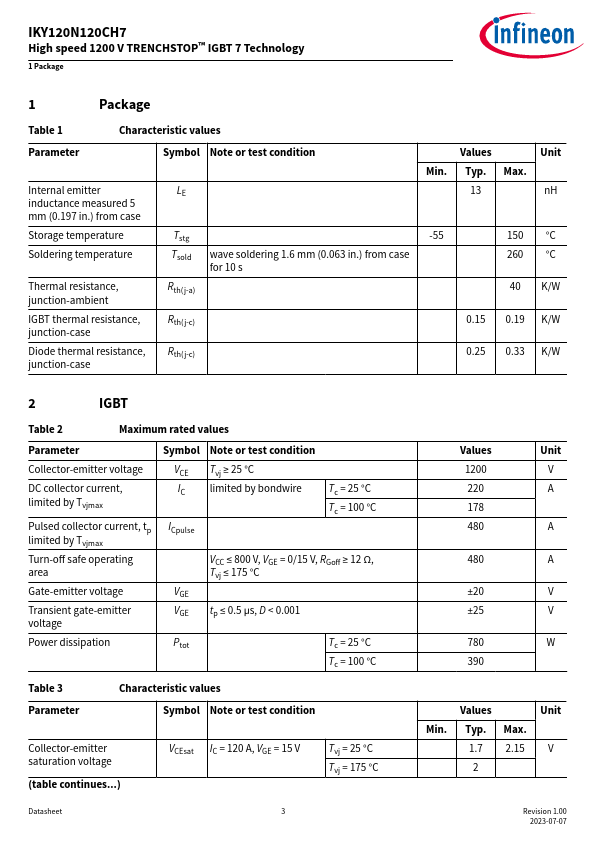

Features

VCE = 1200 V.
IC = 120 A.
Maximum junction temperature Tvjmax = 175°C.
Best-in-class high speed IGBT co-packed with full rated current, low Qrr and soft-commutating high speed diode.
Low saturation voltage VCEsat = 1.7 V at Tvj = 25°C.
Optimized for high efficiency in high speed hard switching topologies (2-L inverter, 3-L NPC T-type, ).
Easy paralleling capability due to positive temperature coefficient in VCEsat.
Pb-fr.
