IM241-M6S1J, IM241-M6T2B - IGBTs

Infineon

IM241-M6S1J Description

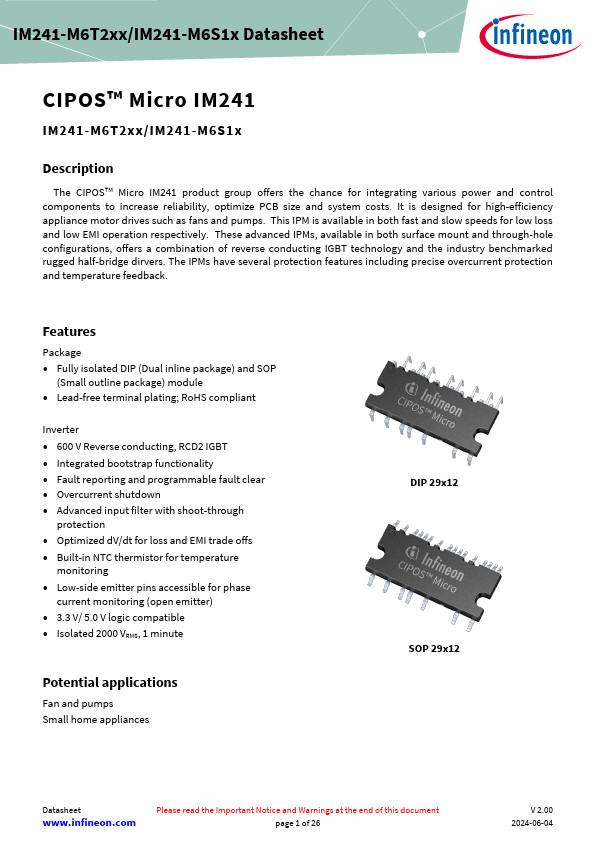

IM241-M6T2xx/IM241-M6S1x Datasheet CIPOS™ Micro IM241 IM241-M6T2xx/IM241-M6S1x .
The CIPOSTM Micro IM241 product group offers the chance for integrating various power and control components to increase reliability, optimize PCB siz.

IM241-M6S1J Features

* including precise overcurrent protection and temperature feedback. Features Package
* Fully isolated DIP (Dual inline package) and SOP (Small outline package) module
* Lead-free terminal plating; RoHS compliant Inverter
* 600 V Reverse conducting, RCD2 IGBT
* Integra

IM241-M6S1J Applications

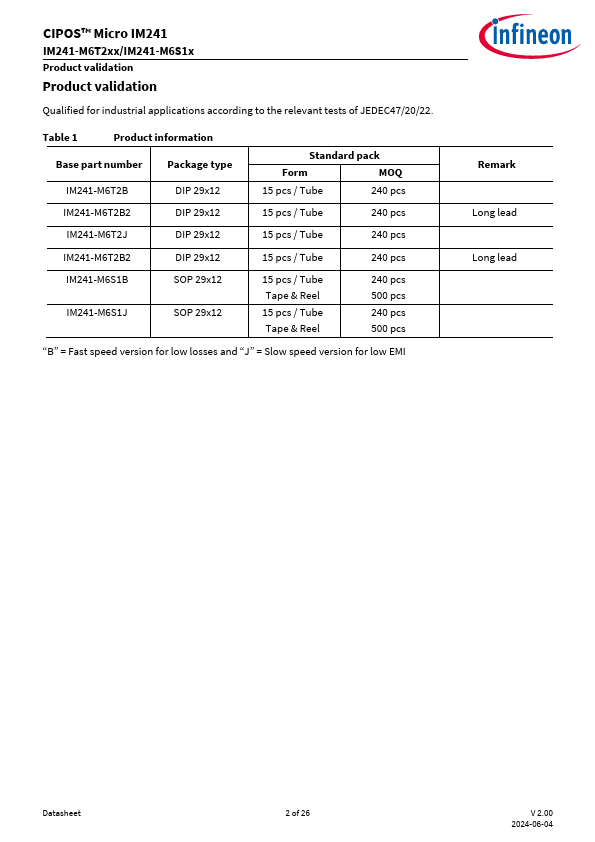

* Fan and pumps Small home appliances DIP 29x12 SOP 29x12 Datasheet www. infineon. com Please read the Important Notice and Warnings at the end of this document page 1 of 26 V 2.00 2024-06-04 CIPOS™ Micro IM241 IM241-M6T2xx/IM241-M6S1x Product validation Product validation Qualified for industrial

📥 Download Datasheet

IM241-M6S1J Datasheet Preview — This datasheet PDF includes multiple part numbers: IM241-M6S1J, IM241-M6T2B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: IM241-M6S1J, IM241-M6T2B
Manufacturer: Infineon ↗
File Size: 801.88 KB
Datasheet: IM241-M6T2B-Infineon.pdf
Description: IGBTs
Note: This datasheet PDF includes multiple part numbers: IM241-M6S1J, IM241-M6T2B.
Please refer to the document for exact specifications by model.
