IM535-U6DS, IM535-U6D Datasheet - Infineon

IM535-U6DS IGBT

The CIPOS™ IM535 product family offers the chance for integrating various power and control components to increase reliability and optimize PCB size and system cost. It is designed to control three-phase motors in variable speed drives. The package concept is specially adapted to power applications,.

IM535-U6DS Features

* Package

* Fully isolated dual in-line molded module

* Very low thermal resistance due to DCB substrate

* Lead-free terminal plating; RoHS compliant Inverter

* TRENCHSTOP™ IGBTs for inverter

* Rugged SOI gate driver technology with stability against transient and negative voltage

IM535-U6D-Infineon.pdf

This datasheet PDF includes multiple part numbers: IM535-U6DS, IM535-U6D. Please refer to the document for exact specifications by model.

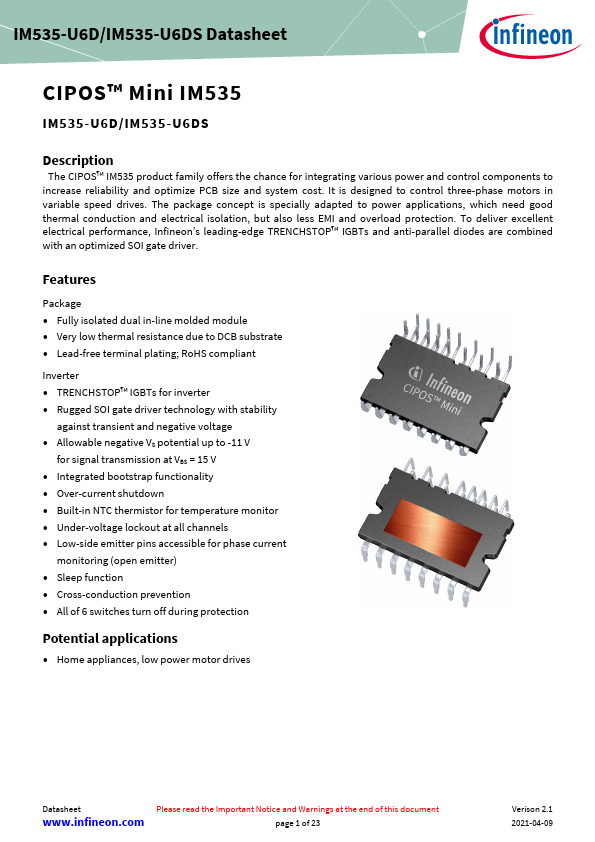

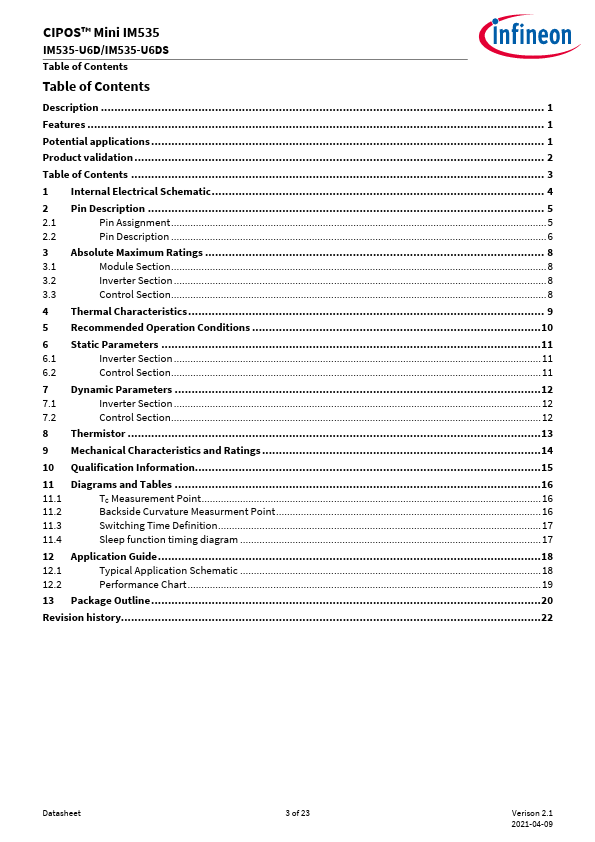

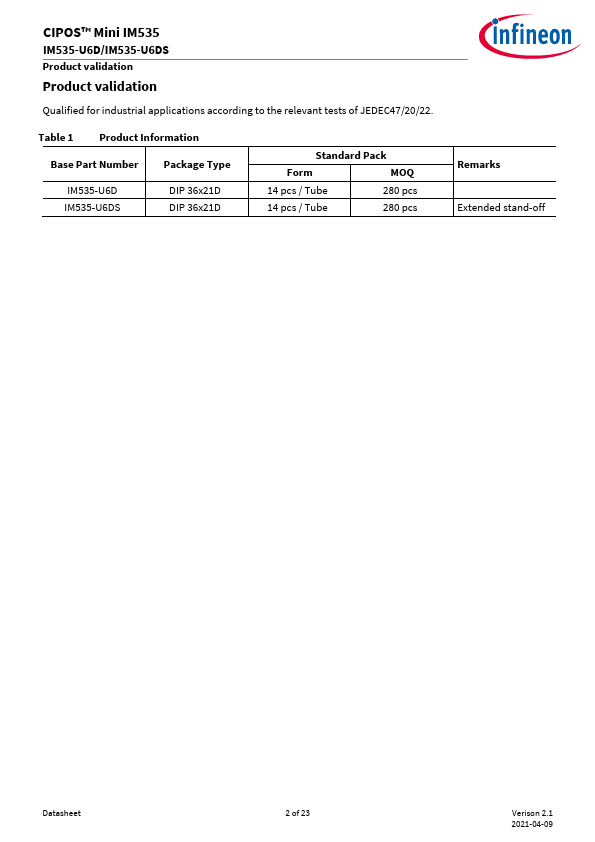

IM535-U6DS Datasheet Preview Page 2 IM535-U6DS Datasheet Preview Page 3

Datasheet Details

Part number:

IM535-U6DS, IM535-U6D

Manufacturer:

Infineon ↗

File Size:

1.35 MB

Description:

Igbt.

Note:

This datasheet PDF includes multiple part numbers: IM535-U6DS, IM535-U6D.
Please refer to the document for exact specifications by model.
