IMC302A - High-performance motor controller

Download the IMC302A datasheet PDF. This datasheet also covers the IMC301A variant, as both devices belong to the same high-performance motor controller family and are provided as variant models within a single manufacturer datasheet.

General Description

iMOTION™ IMC300 is a family of highly integrated ICs for the control of variable speed drives with an additional integrated microcontroller.

Key Features

  • Motion Control Engine (MCE) as a ready-to-use control solution for variable speed drives.
  • Integrated script engine for.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IMC301A-Infineon.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IMC302A
Manufacturer Infineon
File Size 1.38 MB
Description High-performance motor controller
Datasheet download datasheet IMC302A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IMC-0402 High Frequency/ Surface Mount/ Laser Spiral/ Coated Inductors Vishay Siliconix
IMC-0402-01 Surface Mount Inductor Vishay
IMC-0603 Laser Spiral Coated Inductors Vishay
IMC-0603-01 Surface Mount Inductor Vishay
IMC-0805 Molded Inductor Vishay

Other Datasheets by Infineon

Part Number Description
IMC302A-F048 High-performance motor controller
IMC302A-F064 High-performance motor controller
IMC301A High-performance motor controller
IMC301A-F048 High-performance motor controller
IMC301A-F064 High-performance motor controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

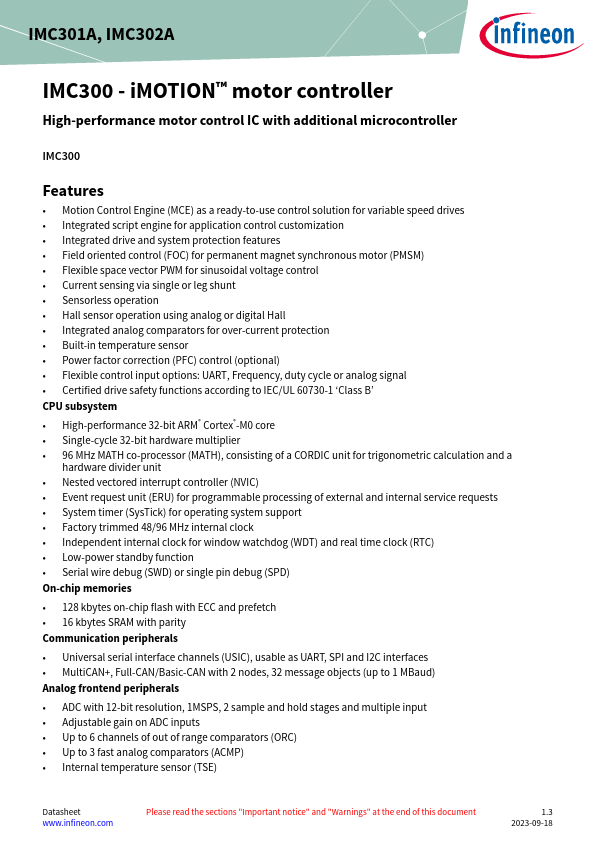

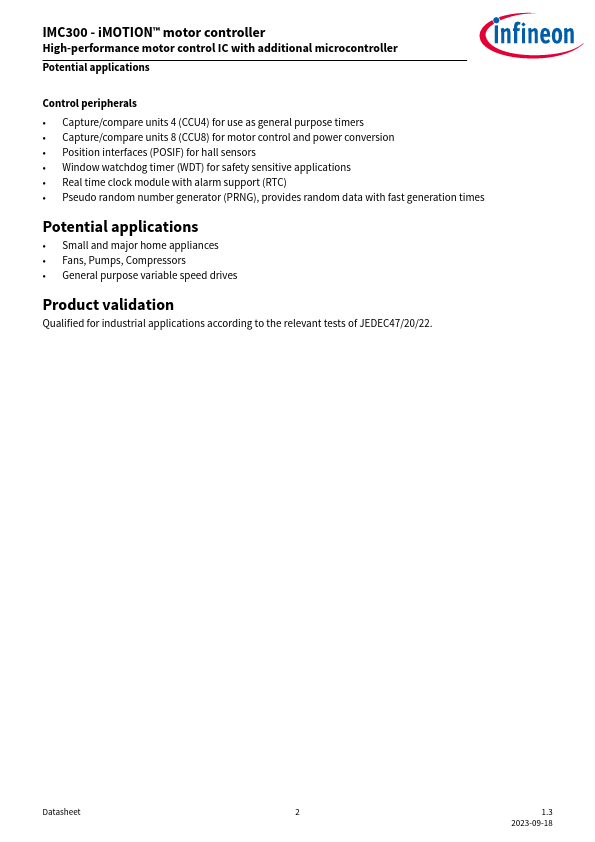

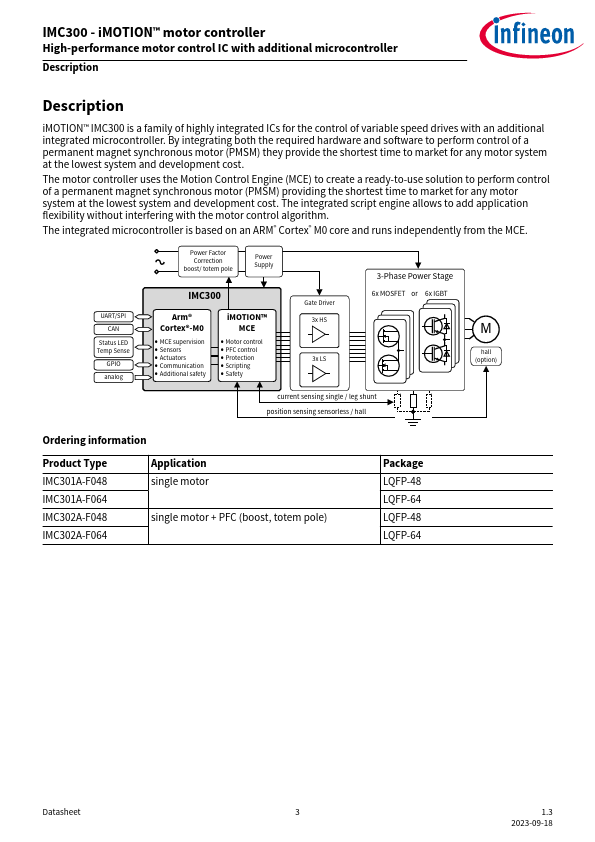

IMC301A, IMC302A IMC300 - iMOTION™ motor controller High-performance motor control IC with additional microcontroller IMC300 Features • Motion Control Engine (MCE) as a ready-to-use control solution for variable speed drives • Integrated script engine for application control customization • Integrated drive and system protection features • Field oriented control (FOC) for permanent magnet synchronous motor (PMSM) • Flexible space vector PWM for sinusoidal voltage control • Current sensing via single or leg shunt • Sensorless operation • Hall sensor operation using analog or digital Hall • Integrated analog comparators for over-current protection • Built-in temperature sensor • Power factor correction (PFC) control (optional) • Flexible control input options: UART, Frequency, duty cycle or
