IMCQ120R010M2H Datasheet - Infineon

IMCQ120R010M2H 1200V SiC MOSFET

Pin definition: * Pin 1 * Gate * Pin 2 * Kelvin sense contact * Pin 3-11 * Source * Pin 12-22, Tab * Drain Note: the source and sense pins are not exchangeable, their exchange might lead to malfunction Type IMCQ120R010M2H Package PG-H.

IMCQ120R010M2H Features

* VDSS = 1200 V at Tvj = 25°C

* IDDC = 138 A at TC = 100°C

* RDS(on) = 10 mΩ at VGS = 18 V, Tvj = 25°C

* Very low switching losses

* Overload operation up to Tvj = 200°C

* Short circuit withstand time 2 µs

* Benchmark gate threshold voltage, VG

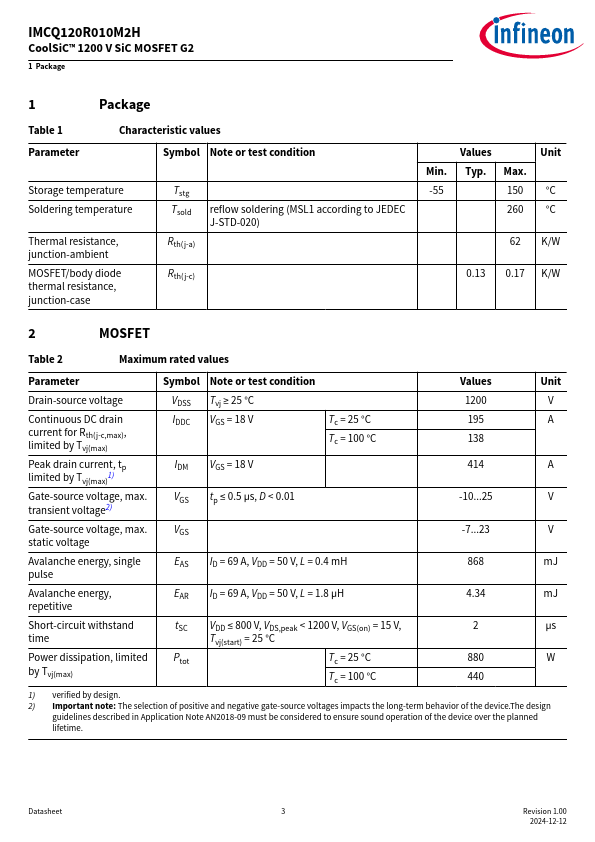

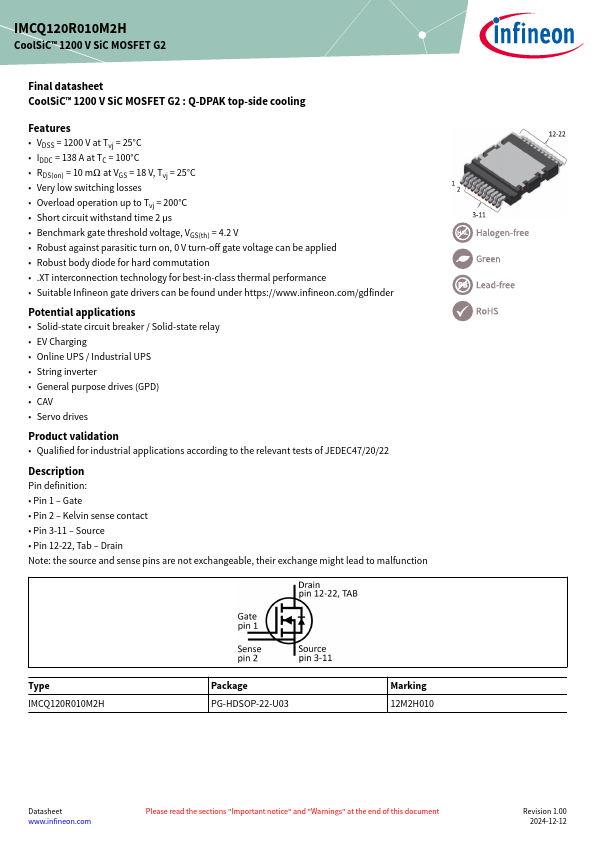

IMCQ120R010M2H Datasheet (1.26 MB)

IMCQ120R010M2H Datasheet Preview — Preview of IMCQ120R010M2H PDF

Datasheet Details

Part number:

IMCQ120R010M2H

Manufacturer:

Infineon ↗

File Size:

1.26 MB

Description:

1200v sic mosfet.
