IMYR140R011M2H 1400V SiC MOSFET

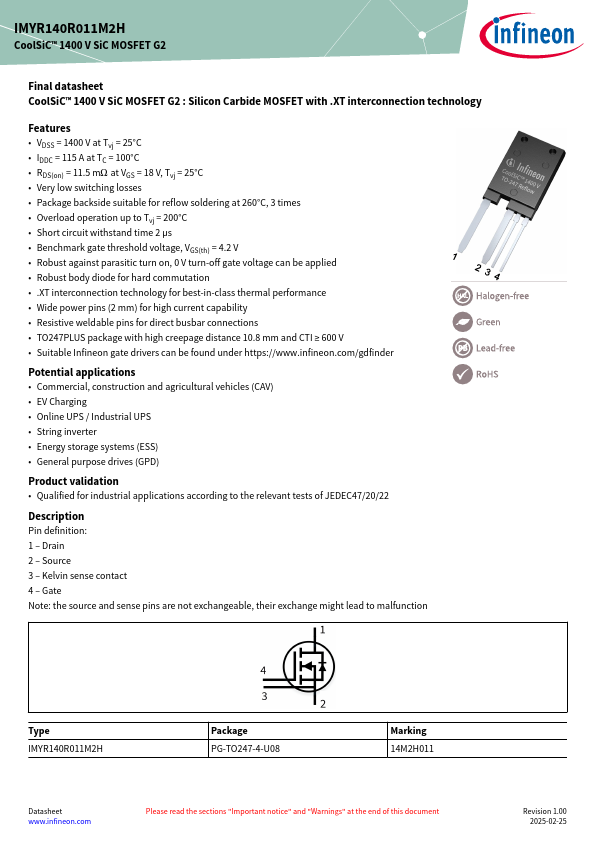

Pin definition: 1 * Drain 2 * Source 3 * Kelvin sense contact 4 * Gate Note: the source and sense pins are not exchangeable, their exchange might lead to malfunction Copyright © Infineon Technolo Type IMYR140R011M2H Package PG-TO247-4-U08 Marking 14M2H011 Datashe.

IMYR140R011M2H Features

* VDSS = 1400 V at Tvj = 25°C

* IDDC = 115 A at TC = 100°C

* RDS(on) = 11.5 mΩ at VGS = 18 V, Tvj = 25°C

* Very low switching losses

* Package backside suitable for reflow soldering at 260°C, 3 times

* Overload operation up to Tvj = 200°C

* Sho
