IMZC120R053M2H Datasheet - Infineon

IMZC120R053M2H, 1200V SiC MOSFET

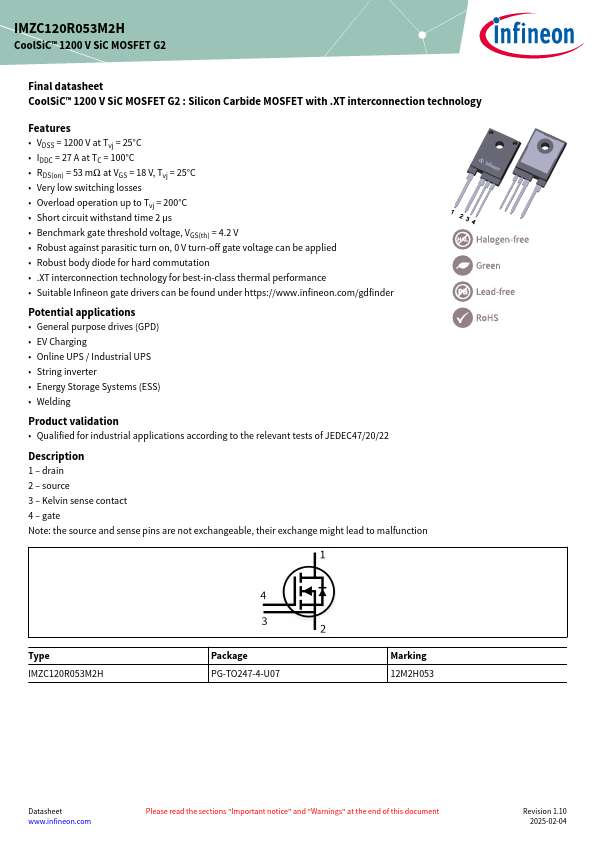

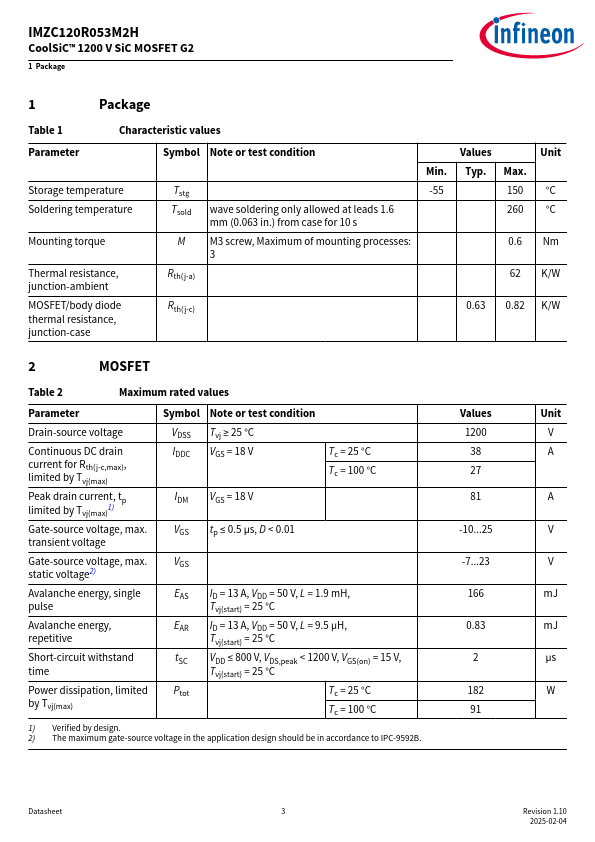

IMZC120R053M2H CoolSiC™ 1200 V SiC MOSFET G2 Final datasheet CoolSiC™ 1200 V SiC MOSFET G2 : Silicon Carbide MOSFET with .XT interconnection technolo.
1. drain 2. source 3. Kelvin sense contact 4. gate Note: the source and sense pins are not exchangeable, their exc.

datasheet Preview Page 1 from Datasheet4u.com

IMZC120R053M2H-Infineon.pdf

IMZC120R053M2H Datasheet Preview — Preview of IMZC120R053M2H PDF

Datasheet Details

Part number:

IMZC120R053M2H

Manufacturer:

Infineon ↗

File Size:

1.33 MB

Description:

1200V SiC MOSFET

Features

* VDSS = 1200 V at Tvj = 25°C
* IDDC = 27 A at TC = 100°C
* RDS(on) = 53 mΩ at VGS = 18 V, Tvj = 25°C
* Very low switching losses
* Overload operation up to Tvj = 200°C
* Short circuit withstand time 2 µs
* Benchmark gate threshold voltage, VGS

Applications

* General purpose drives (GPD)
* EV Charging
* Online UPS / Industrial UPS
* String inverter
* Energy Storage Systems (ESS)
* Welding Product validation
* Qualified for industrial applications according to the relevant tests of JEDEC47/20/22
