IPA60R120C7 Datasheet - Infineon

IPA60R120C7, MOSFET

MOSFET Metal Oxide Semiconductor Field Effect Transistor CoolMOS™ C7 600V CoolMOS™ C7 Power Transistor IPA60R120C7 Data Sheet Rev.2.0 Final Power Man.
CoolMOS™ C7 is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle and pioneered by Infi.

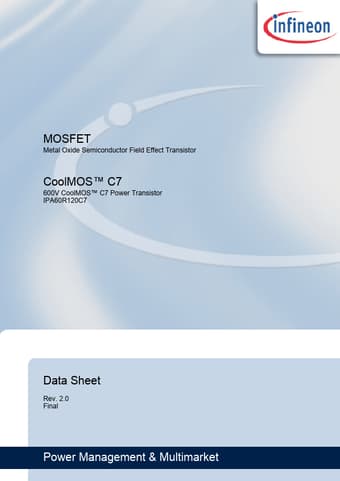

datasheet Preview Page 1 from Datasheet4u.com

IPA60R120C7-Infineon.pdf

IPA60R120C7 Datasheet Preview — Preview of IPA60R120C7 PDF

Datasheet Details

Part number:

IPA60R120C7

Manufacturer:

Infineon ↗

File Size:

1.09 MB

Description:

MOSFET

Features

* Suitable for hard and soft switching (PFC and high performance LLC)
* Increased MOSFET dv/dt ruggedness to 120V/ns
* Increased efficiency due to best in class FOM RDS(on)
* Eoss and RDS(on)
* Qg
* Best in class RDS(on) /package
* Qualified for industrial

Applications

* according to JEDEC (J-STD20 and JESD22) Benefits
* Increased economies of scale by use in PFC and PWM topo
