IPF019N12NM6 Datasheet, Mosfet, Infineon

IPF019N12NM6 Features

  • Mosfet
  • N-channel, normal level
  • Very low on-resistance RDS(on)
  • Excellent gate charge x RDS(on) product (FOM)
  • Very low reverse recovery charge (Qrr)

PDF File Details

Part number:

IPF019N12NM6

Manufacturer:

Infineon ↗

File Size:

1.00MB

Download:

📄 Datasheet

Description:

Mosfet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

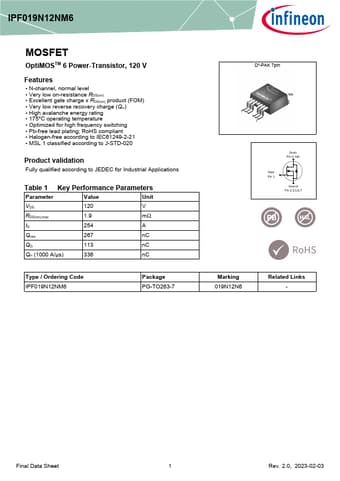

Datasheet Preview: IPF019N12NM6 📥 Download PDF (1.00MB)
Page 2 of IPF019N12NM6 Page 3 of IPF019N12NM6

IPF019N12NM6 Application

  • Applications Table 1 Key Performance Parameters Parameter Value Unit VDS 120 V RDS(on),max 1.9 mΩ ID 254 A Qoss 267 nC QG 113
