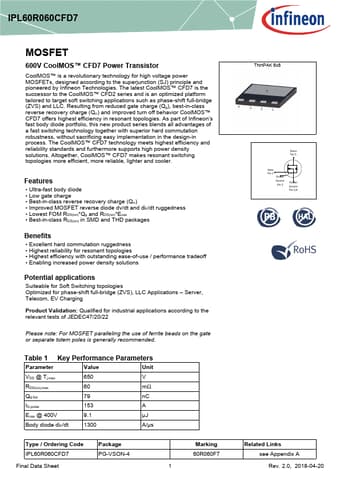

IPL60R060CFD7 MOSFET 600V CoolMOSª CFD7 Power Transistor CoolMOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle and pioneered by Infineon Technologies.
The latest CoolMOS™ CFD7 is the successor to the CoolMOS™ CFD2 series and is an optimized platform tailored to target soft switching applications such as phase-shift full-bridge (ZVS) and LLC.
Resulting from reduced gate charge (Qg), best-in-class reverse recovery charge (Qrr
IPL60R060CFD7 Features
* Ultra-fast body diode
* Low gate charge
* Best-in-class reverse recovery charge (Qrr)
* Improved MOSFET reverse diode dv/dt and diF/dt ruggedness
* Lowest FOM RDS(on)
* Qg and RDS(on)
* Eoss
* Best-in-class RDS(on) in SMD and THD packages Benefit
