IPL60R160CFD7 Datasheet - Infineon

IPL60R160CFD7 - 600V MOSFET

IPL60R160CFD7 MOSFET 600V CoolMOSª CFD7 Power Transistor CoolMOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle and pioneered by Infineon Technologies. The latest CoolMOS™ CFD7 is the successor to the CoolMOS™ CFD2 series and is an optimized platform tailored to target soft switching applications such as phase-shift full-bridge (ZVS) and LLC. Resulting from reduced gate charge (Qg), best-in-class reverse recovery charge (Qrr.

IPL60R160CFD7 Features

* Ultra-fast body diode

* Low gate charge

* Best-in-class reverse recovery charge (Qrr)

* Improved MOSFET reverse diode dv/dt and diF/dt ruggedness

* Lowest FOM RDS(on)

* Qg and RDS(on)

* Eoss

* Best-in-class RDS(on) in SMD and THD packages Benefit

IPL60R160CFD7-Infineon.pdf

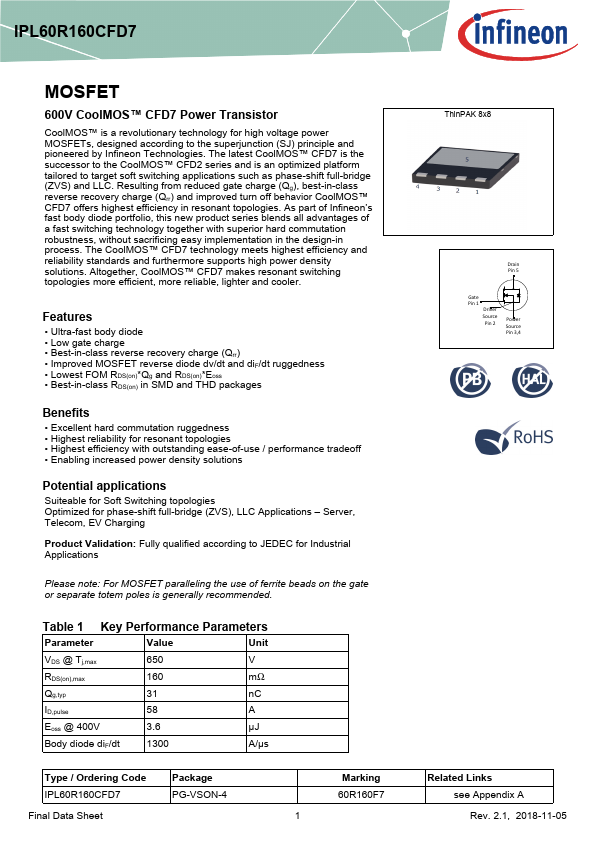

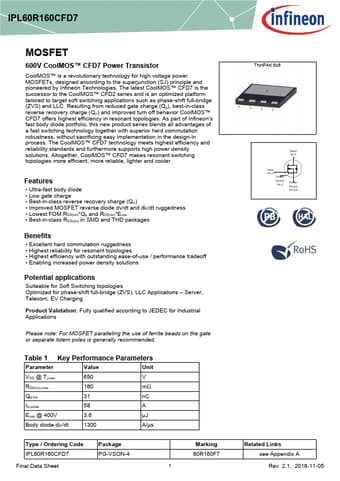

Preview of IPL60R160CFD7 PDF

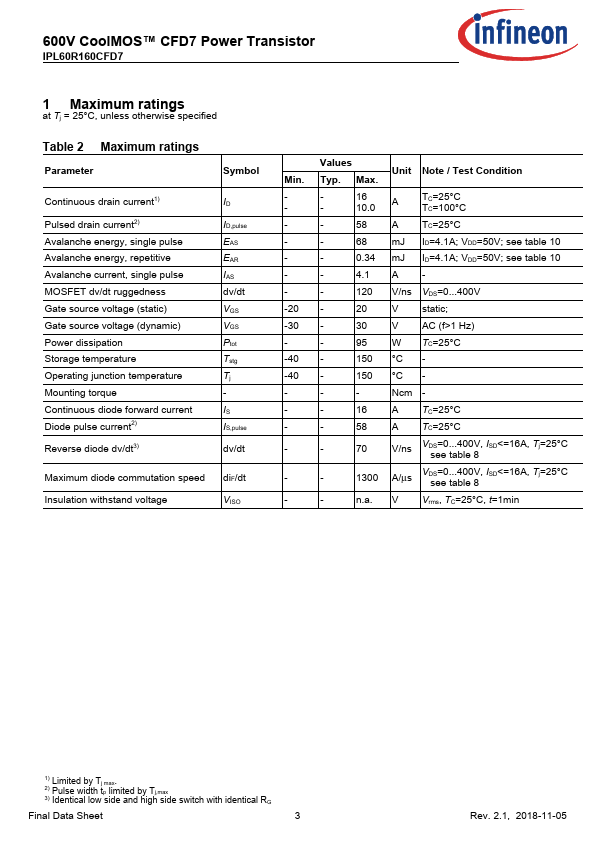

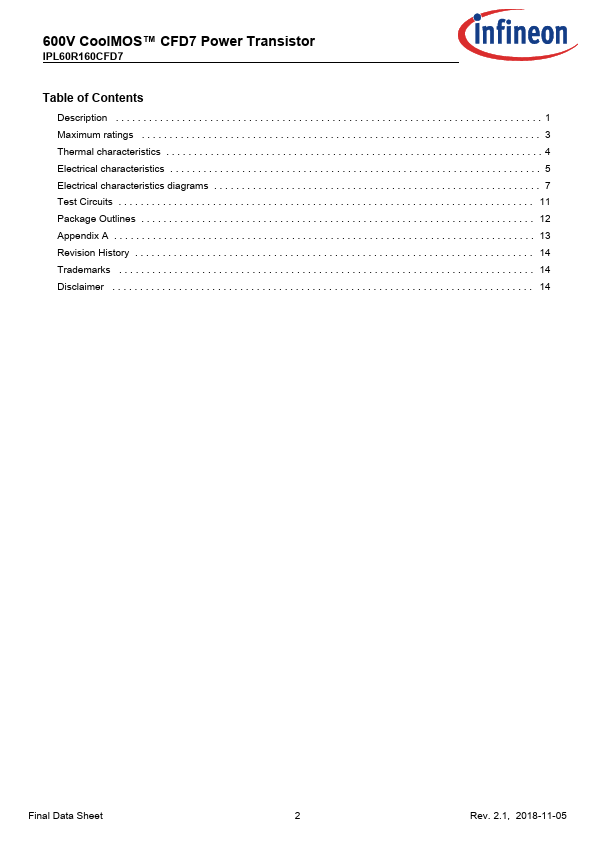

IPL60R160CFD7 Datasheet Preview Page 2 IPL60R160CFD7 Datasheet Preview Page 3

Datasheet Details

Part number:

IPL60R160CFD7

Manufacturer:

Infineon ↗

File Size:

1.34 MB

Description:

600v mosfet.
