IPL65R165CFD, MOSFET

MOSFET Metal Oxide Semiconductor Field Effect Transistor CoolMOS™ CFD2 650V Thinpak 650V CoolMOS™ CFD2 Power Transistor IPL65R165CFD Data Sheet Rev..
CoolMOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle and pioneered by Infineo.

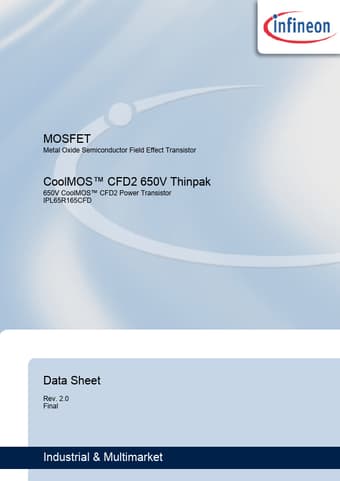

datasheet Preview Page 1 from Datasheet4u.com

IPL65R165CFD-Infineon.pdf

IPL65R165CFD Datasheet Preview — Preview of IPL65R165CFD PDF

Datasheet Details

Part number:

IPL65R165CFD

Manufacturer:

Infineon ↗

File Size:

1.57 MB

Description:

MOSFET

Features

* Reduced board space consumption
* Increased power density
* Short commutation loop
* Smooth switching waveform
* Ultra-fast body diode
* Very high commutation ruggedness
* Extremely low losses due to very low FOM Rdson
* Qg and Eoss

Applications

* more reliable, more efficient, lighter and cooler. ThinPAK ThinPAK is a a new leadless SMD package for HV MOSFETs. The new package has a very small footprint of only 64mm² (vs. 150mm² for the D²PAK) and a very low profile with only 1mm height (vs. 4.4mm for the D²PAK). The significantly smaller pack
