IPS04N03LA - Power Transistor

IPS04N03LA Description

Type OptiMOS®2 Power-Transistor Package Marking * Qualified according to JEDEC1) for target applications * N-channel, logic level .

IPS04N03LA Applications

* N-channel, logic level
* Excellent gate charge x R DS(on) product (FOM)
* Superior thermal resistance
* 175 °C operating temperature
* Pb-free lead plating; RoHS compliant IPD04N03LA G IPF04N03LA G IPS04N03LA G IPU04N03LA G Product Summary V DS R DS(on),ma

📥 Download Datasheet

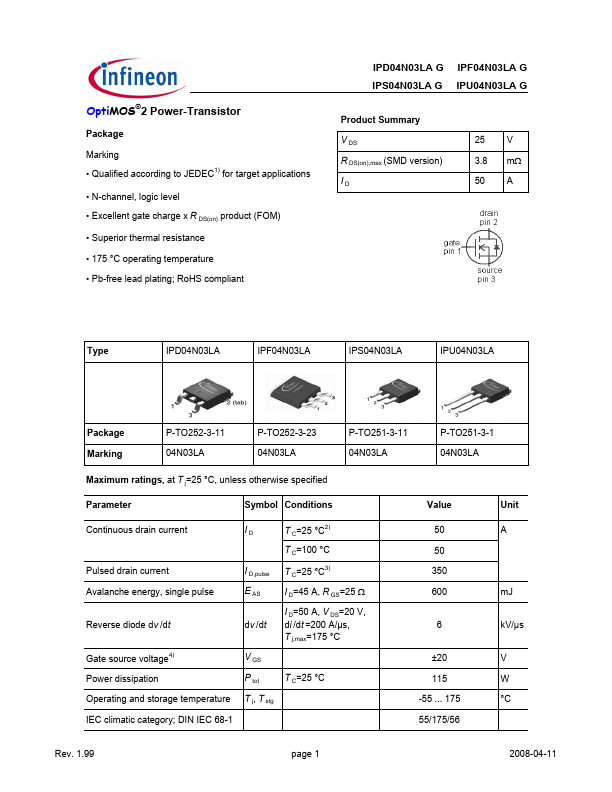

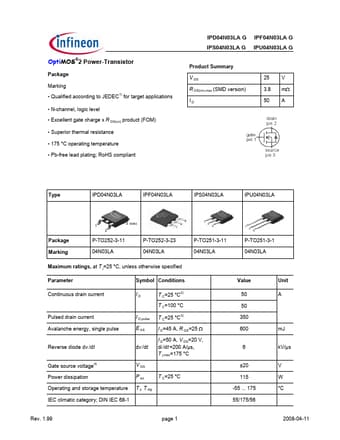

Preview of IPS04N03LA PDF

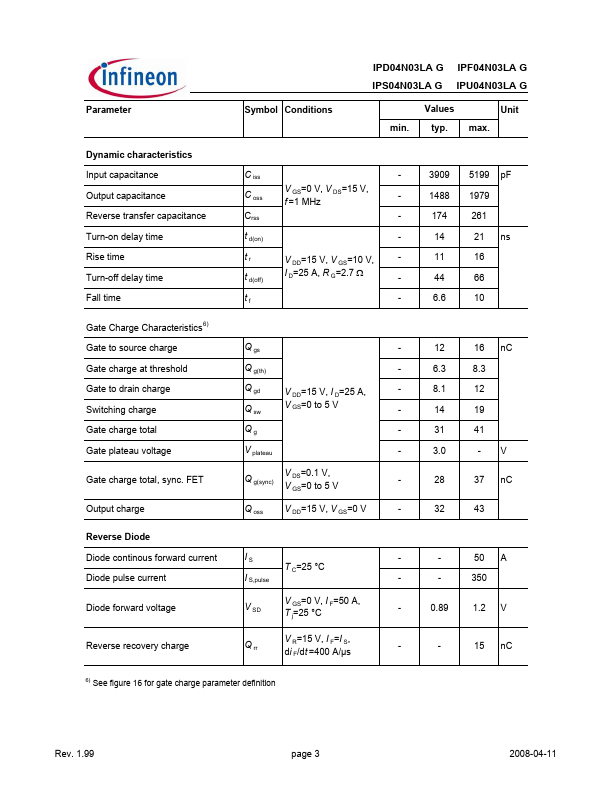

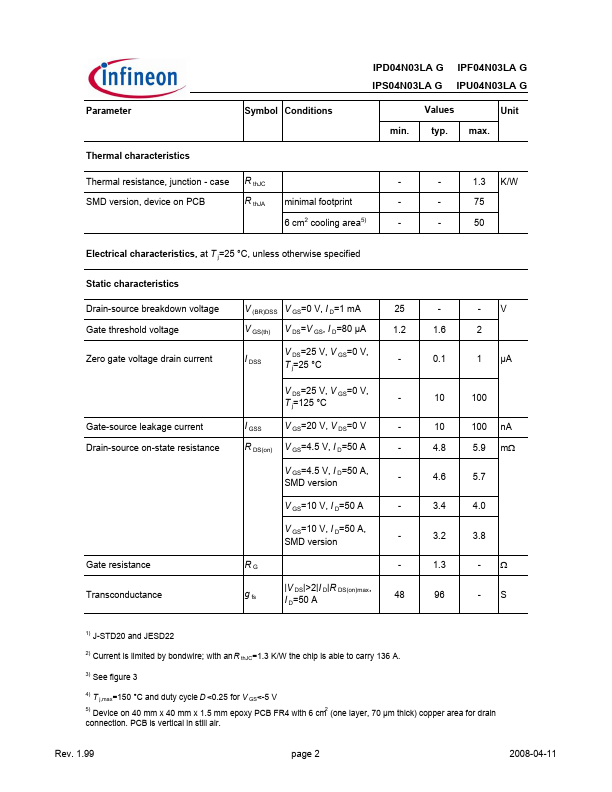

datasheet Preview Page 2 datasheet Preview Page 3
