IQDH29NE2LM5CG Datasheet, Mosfet, Infineon

IQDH29NE2LM5CG Features

  • Mosfet
  • N-channel, logic level
  • Very low on-resistance RDS(on)
  • Superior thermal resistance
  • 100% avalanche tested
  • Pb-free lead plating; RoHS comp

PDF File Details

Part number:

IQDH29NE2LM5CG

Manufacturer:

Infineon ↗

File Size:

1.08MB

Download:

📄 Datasheet

Description:

Mosfet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

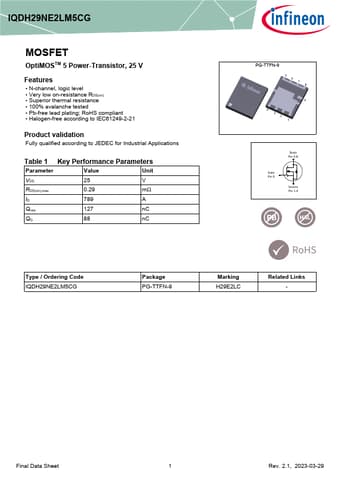

Datasheet Preview: IQDH29NE2LM5CG 📥 Download PDF (1.08MB)
Page 2 of IQDH29NE2LM5CG Page 3 of IQDH29NE2LM5CG

IQDH29NE2LM5CG Application

  • Applications Table 1 Key Performance Parameters Parameter Value Unit VDS 25 V RDS(on),max 0.29 mΩ ID 789 A Qoss 127 nC QG 88
