IQDH88N06LM5, MOSFET

IQDH88N06LM5 MOSFET OptiMOSTM 5 Power-Transistor, 60 V .

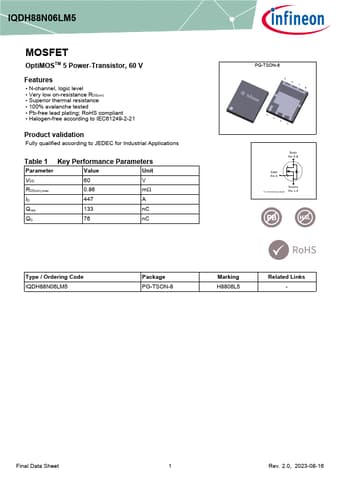

datasheet Preview Page 1 from Datasheet4u.com

IQDH88N06LM5-Infineon.pdf

IQDH88N06LM5 Datasheet Preview — Preview of IQDH88N06LM5 PDF

Datasheet Details

Part number:

IQDH88N06LM5

Manufacturer:

Infineon ↗

File Size:

1.20 MB

Description:

MOSFET

Features

* N-channel, logic level
* Very low on-resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Product validation Fully qualified according to JEDEC for I

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 0.86 mΩ ID 447 A Qoss 133 nC QG 76 nC PG-TSON-8 5 6 7 8 4 3 2 1 Drain Pin 5-8 Gate
* 1 Pin 4 Source
* 1: Internal body diode Pin 1-3 Type / Ordering Code IQDH88N06LM5 Package PG-TSON-8
