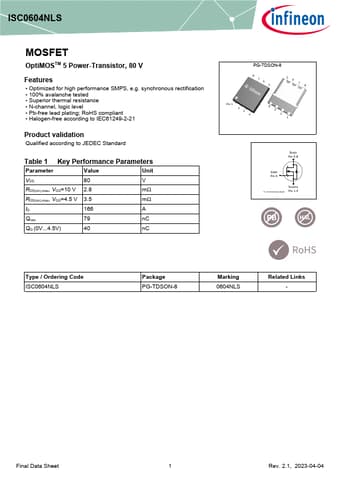

ISC0604NLS - MOSFET

Infineon

Datasheet Details

. . .

Optimized for high performance SMPS, e. g. synchronous rectification.
100% avalanche tested.
Superior thermal resistance.
N-channel, logic level.
Pb-free lead plating; RoHS compliant.
Halogen-free according to IEC61249-2-21 Product validation Qualified according to JEDEC Standard Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max, VGS=10 V 2.8 mΩ RDS(on),max, VGS=4.5 V 3.5 mΩ ID 166 A Qoss 79 nC.
