ISC-1812 - Shielded Inductors

Product Overview

Vishay Siliconix

Datasheet Details

Part number	ISC-1812
Manufacturer	Vishay Siliconix
File Size	95.14 KB
Description	Shielded Inductors
Datasheet	ISC-1812 Datasheet

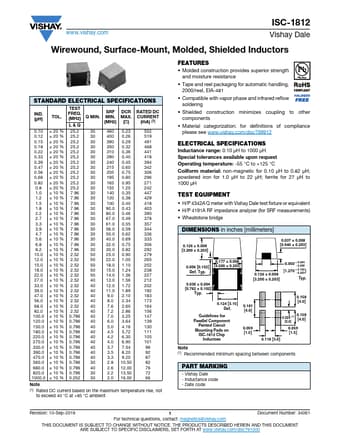

Additional preview pages of the ISC-1812 datasheet.

Product details

Description

ISC-1812 10 μH MODEL INDUCTANCE VALUE ± 10 % INDUCTANCE TOLERANCE ER PACKAGE CODE e3 JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I S C 1 8 1 2 PRODUCT FAMILY SIZE E R PACKAGE CODE 1 0 0 INDUCTANCE VALUE K TOL.Revision: 10-Sep-2019 2 Document Number: 34061 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.

Features

Molded construction provides superior strength and moisture resistance.
Tape and reel packaging for automatic handling, 2000/reel, EIA-481.
Compatible with vapor phase and infrared reflow soldering.
Shielded construction minimizes coupling to other components.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
