ISC011N06LM5 60V MOSFET

ISC011N06LM5 Description

ISC011N06LM5 MOSFET OptiMOSTM5 Power-Transistor, 60 V .

ISC011N06LM5 Features

* Optimized for synchronous rectification
* 100% avalanche tested
* Superior thermal performance
* 175°C rated
* N-channel
* Pb-free lead plating : RoHS compliant
* Halogen-free according to EC61249-2-21 Product validation Fully qualified accor

ISC011N06LM5 Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 1.15 mΩ ID 288 A Qoss 103 nC QG(0V. .4.5V) 63 nC PG-TDSON-8 8 7 6 5 5 6 7 8 Pin 1 2 3 4 4 3 2 1 Drain Pin 5-8 Gate
* 1 Pin 4 Source
* 1: Internal body diode Pin 1-3 Type / Ordering Cod

📥 Download Datasheet

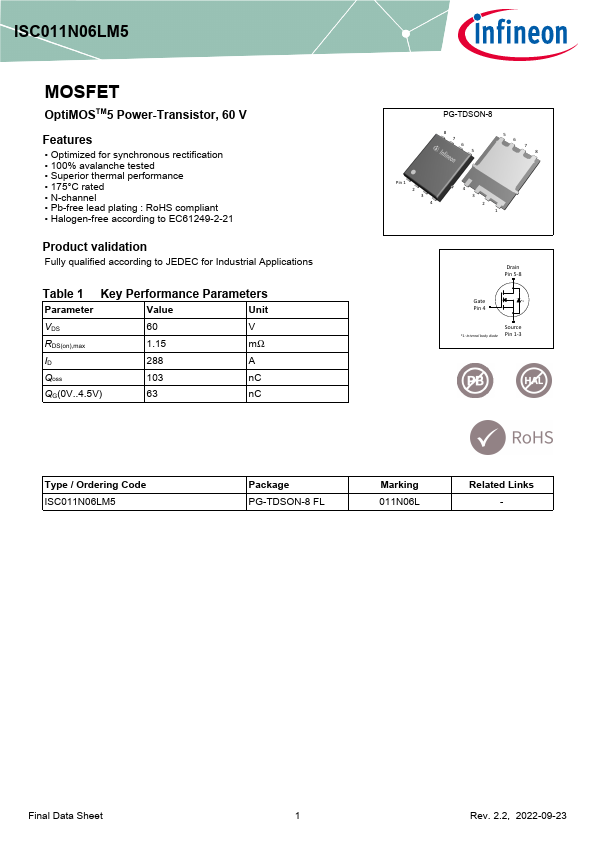

Preview of ISC011N06LM5 PDF

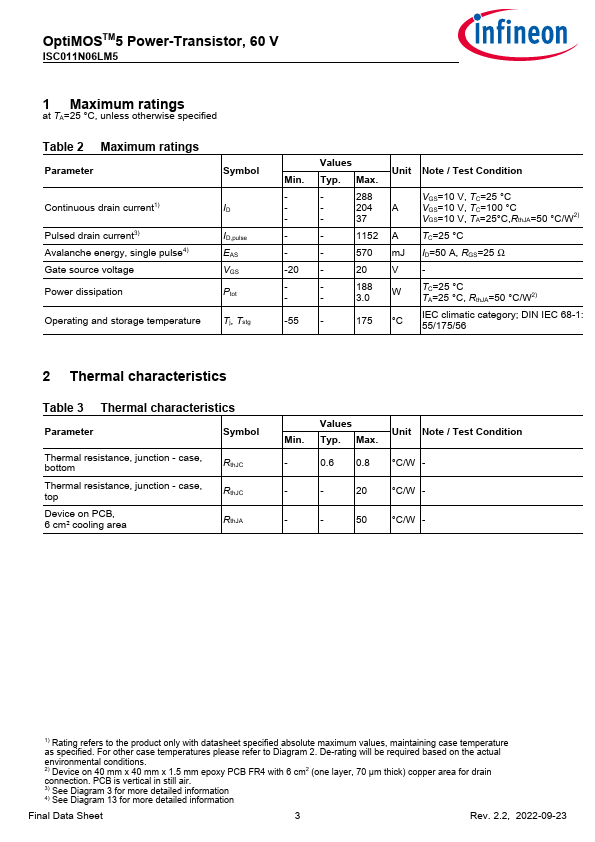

datasheet Preview Page 2 datasheet Preview Page 3
