ISC014N08NM6, MOSFET

ISC014N08NM6 MOSFET OptiMOSTM 6 Power-Transistor, 80 V .

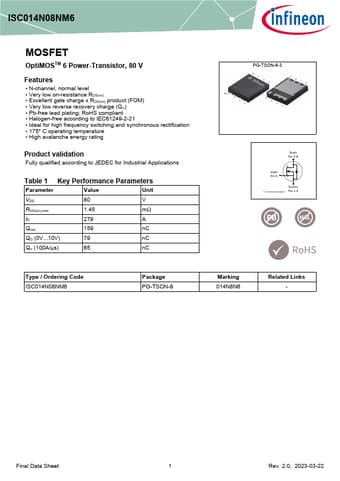

datasheet Preview Page 1 from Datasheet4u.com

ISC014N08NM6-Infineon.pdf

ISC014N08NM6 Datasheet Preview — Preview of ISC014N08NM6 PDF

Datasheet Details

Part number:

ISC014N08NM6

Manufacturer:

Infineon ↗

File Size:

1.05 MB

Description:

MOSFET

Features

* N-channel, normal level
* Very low on-resistance RDS(on)
* Excellent gate charge x RDS(on) product (FOM)
* Very low reverse recovery charge (Qrr)
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21
* Ideal for hig

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max 1.45 mΩ ID 279 A Qoss 159 nC QG (0V10V) 79 nC Qrr (100A/µs) 65 nC Type / Ordering Code ISC014N08NM6 Package PG-TSON-8 PG-TSON-8-3 8 7 6 5 5 6 7 8 Pin 1 2 3 4 4 3 2 1 Drain Pin 5-8 Gate
