ISC010N06NM5 60V MOSFET

ISC010N06NM5 Description

ISC010N06NM5 MOSFET OptiMOSTM5 Power-Transistor, 60 V .

ISC010N06NM5 Features

* Optimized for synchronous rectification
* 100% avalanche tested
* Superior thermal resistance
* N-channel
* 175°C rated
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21
* Higher solder joint reliability

ISC010N06NM5 Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 1.05 mΩ ID 330 A Qoss 123 nC QG(0V. .10V) 115 nC PG-TSON-8-3 8 7 6 5 5 6 7 8 Pin 1 2 3 4 4 3 2 1 Drain Pin 5-8 Gate
* 1 Pin 4 Source
* 1: Internal body diode Pin 1-3 Type / Ordering

📥 Download Datasheet

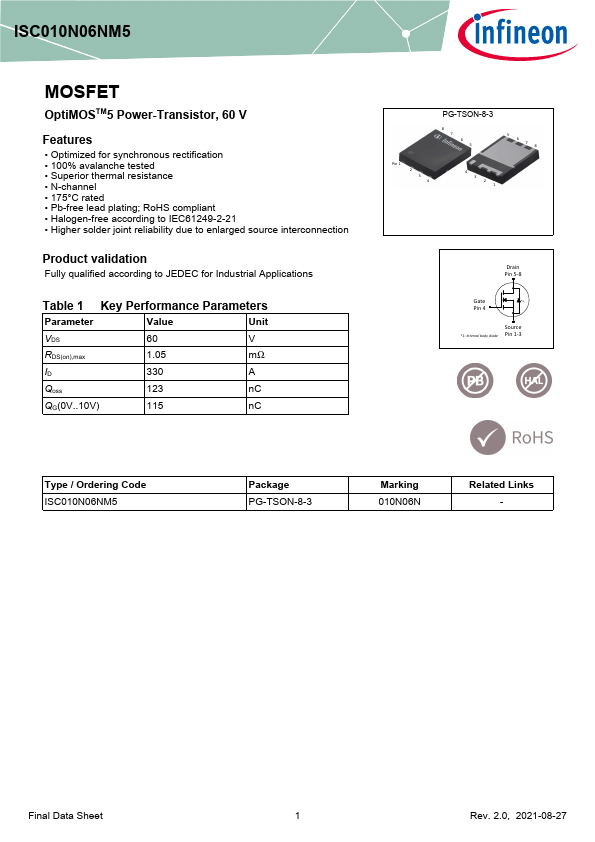

Preview of ISC010N06NM5 PDF

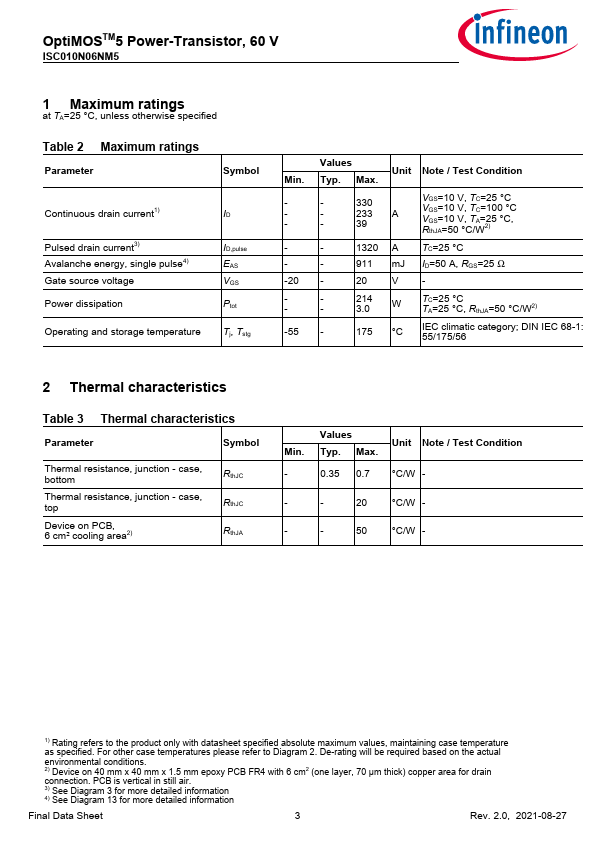

datasheet Preview Page 2 datasheet Preview Page 3
