ISC009N06LM5 MOSFET

ISC009N06LM5 Description

ISC009N06LM5 MOSFET OptiMOSTM5 Power-Transistor, 60 V .

ISC009N06LM5 Features

* Optimized for synchronous rectification
* 100% avalanche tested
* Superior thermal performance
* N-channel
* 175°C rated
* Pb-free lead plating : RoHS compliant
* Halogen-free according to EC61249-2-21
* Higher solder joint reliabilit

ISC009N06LM5 Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 0.9 mΩ ID 348 A Qoss 127 nC QG(0V. .4.5V) 77 nC PG-TSON-8-3 8 7 6 5 5 6 7 8 Pin 1 2 3 4 4 3 2 1 Drain Pin 5-8 Gate
* 1 Pin 4 Source
* 1: Internal body diode Pin 1-3 Type / Ordering C

📥 Download Datasheet

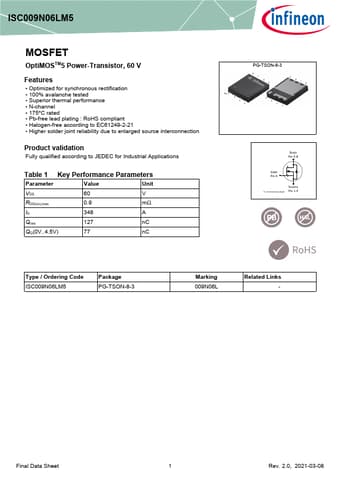

Preview of ISC009N06LM5 PDF
