ISK018NE1LM7, MOSFET

ISK018NE1LM7 MOSFET OptiMOSTM 7 Power-Transistor, 15 V .

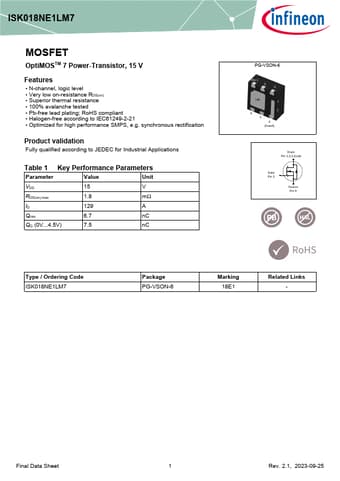

datasheet Preview Page 1 from Datasheet4u.com

ISK018NE1LM7-Infineon.pdf

ISK018NE1LM7 Datasheet Preview — Preview of ISK018NE1LM7 PDF

Datasheet Details

Part number:

ISK018NE1LM7

Manufacturer:

Infineon ↗

File Size:

1.23 MB

Description:

MOSFET

Features

* N-channel, logic level
* Very low on-resistance RDS(on)
* Superior thermal resistance
* 100% avalanche tested
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21
* Optimized for high performance SMPS, e. g. synchro

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 15 V RDS(on),max 1.8 mΩ ID 129 A Qoss 6.7 nC QG (0V4.5V) 7.5 nC PG-VSON-6 Pin 1 2 3 tab 6 5 4 (fused) Drain Pin 1,2,5,6,tab Gate Pin 3 Source Pin 4 Type / Ordering Code ISK018NE1LM7 Package PG-VSON-6 Marking 18E1
