ISK0505A Datasheet - XP Power

ISK0505A DC-DC Converter

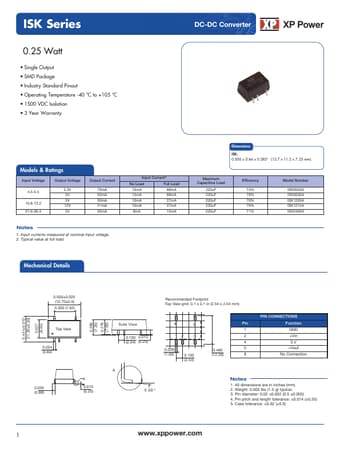

ISK Series 0.25 Watt xxxSingle Output Series SMD Package Industry Standard Pinout Operating Temperature 40 °C to +105 °C 1500 VDC Isolation 3 Year Warranty DC-DC Converter Models & Ratings Input Voltage 4.5-5.5 10.8-13.2 21.6-26.4 Output Voltage 3.3V 5V 5V 12V 5V Output Current 76mA 50mA 50mA 21mA 50mA Notes 1. Input currents measured at nominal input voltage. 2. Typical value at full load. Input Current(3) No Load Full Load 1.

ISK0505A Datasheet (256.21 KB)
