ISK036N03LM5, MOSFET

ISK036N03LM5 MOSFET OptiMOSTM 5 Power-Transistor, 30 V .

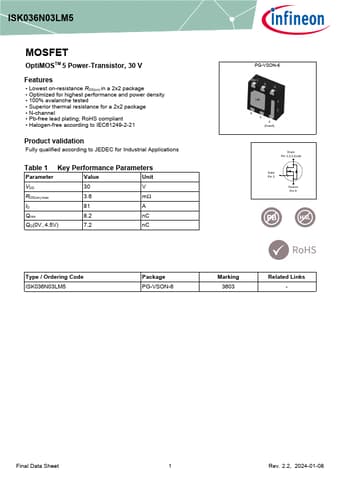

datasheet Preview Page 1 from Datasheet4u.com

ISK036N03LM5-Infineon.pdf

ISK036N03LM5 Datasheet Preview — Preview of ISK036N03LM5 PDF

Datasheet Details

Part number:

ISK036N03LM5

Manufacturer:

Infineon ↗

File Size:

1.28 MB

Description:

MOSFET

Features

* Lowest on-resistance RDS(on) in a 2x2 package
* Optimized for highest performance and power density
* 100% avalanche tested
* Superior thermal resistance for a 2x2 package
* N-channel
* Pb-free lead plating; RoHS compliant
* Halogen-free acco

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 30 V RDS(on),max 3.6 mΩ ID 81 A Qoss 8.2 nC QG(0V. .4.5V) 7.2 nC PG-VSON-6 Pin 1 2 3 tab 6 5 4 (fused) Drain Pin 1,2,5,6,tab Gate Pin 3 Source Pin 4 Type / Ordering Code ISK036N03LM5 Package PG-VSON-6 Marking 3603
