ITS4141D - Smart High-Side Power Switch

Datasheet Summary

Description

monolithically integrated in Smart SIPMOS technology.

Providing embedded protective functions.

Features

  • Short circuit protection.
  • Current limitation.
  • Overload protection.
  • Overvoltage protection (including load dump) Product Summary Overvoltage protection Operating voltage On-state resistance Operating temperature.
  • Undervoltage shutdown with autorestart and hysteresis.
  • Switching inductive loads.
  • Clamp of negative voltage at output with inductive loads.
  • CMOS compatible input.
  • Thermal shutdown with restart.

📥 Download Datasheet

Datasheet preview – ITS4141D

Datasheet Details

Part number ITS4141D
Manufacturer Infineon
File Size 439.40 KB
Description Smart High-Side Power Switch
Datasheet download datasheet ITS4141D Datasheet
Additional preview pages of the ITS4141D datasheet.

📁 Similar Datasheet

Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

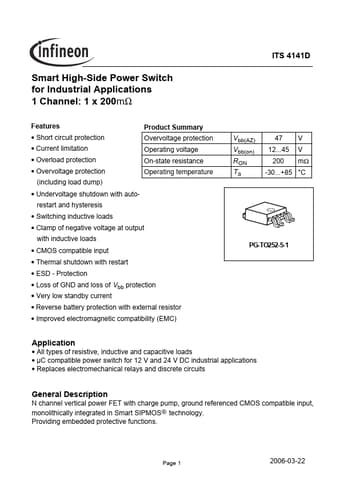

Smart High-Side Power Switch for Industrial Applications 1 Channel: 1 x 200mΩ ITS 4141D Features • Short circuit protection • Current limitation • Overload protection • Overvoltage protection (including load dump) Product Summary Overvoltage protection Operating voltage On-state resistance Operating temperature • Undervoltage shutdown with autorestart and hysteresis • Switching inductive loads • Clamp of negative voltage at output with inductive loads • CMOS compatible input • Thermal shutdown with restart • ESD - Protection • Loss of GND and loss of Vbb protection • Very low standby current • Reverse battery protection with external resistor • Improved electromagnetic compatibility (EMC) Vbb(AZ) Vbb(on) RON Ta 47 V 12...45 V 200 mΩ -30...
