S28HS04GT - 4Gb Flash

This page provides the datasheet information for the S28HS04GT, a member of the S28HS02GT 4Gb Flash family.

Features

  • Functional safety with the industry’s first ISO26262 ASIL B compliant and ASIL D ready NOR Flash.
  • Infineon Endurance flex architecture provides high-endurance and long retention partitions.
  • Data integrity CRC detects errors in memory array.
  • SafeBoot reports device initialization failures, detects configuration corruption, and provides recovery options.
  • Built-in error correcting code (ECC) corrects single-bit error and detects double-bit error (SECDED.

📥 Download Datasheet

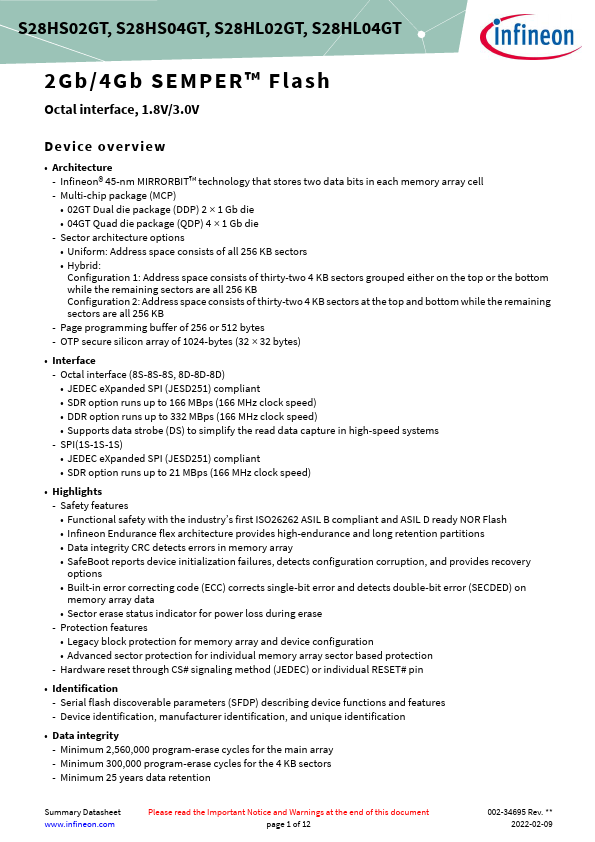

Datasheet preview – S28HS04GT

Datasheet Details

Part number S28HS04GT
Manufacturer Infineon
File Size 158.25 KB
Description 4Gb Flash
Datasheet download datasheet S28HS04GT Datasheet

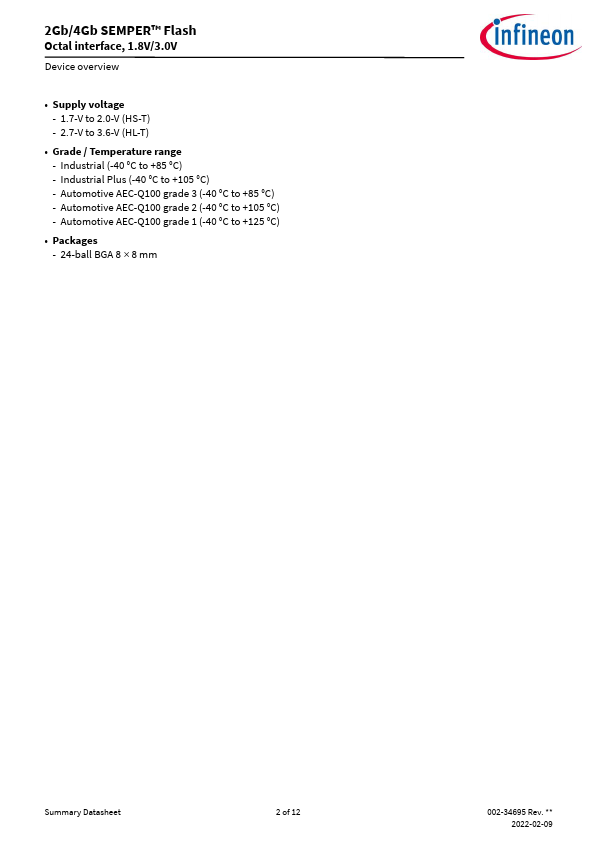

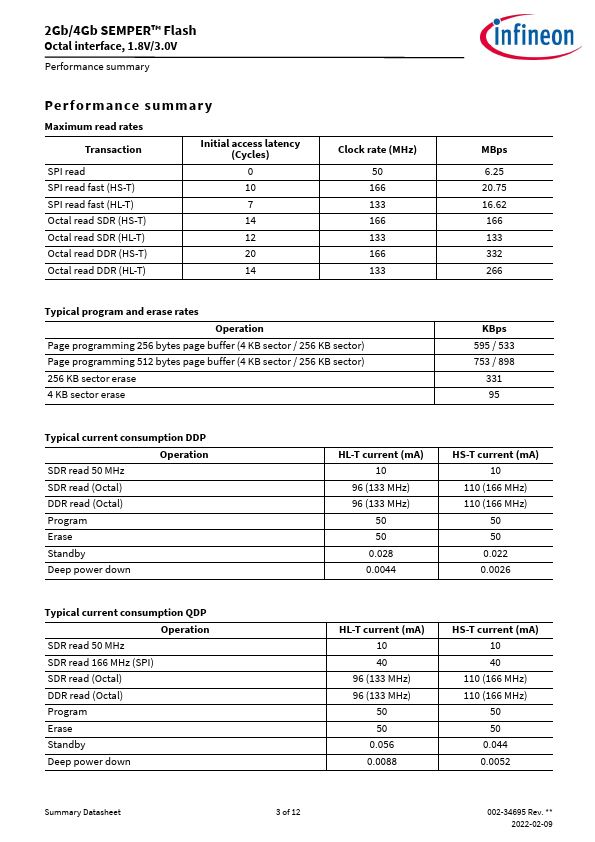

Additional preview pages of the S28HS04GT datasheet.

📁 Similar Datasheet

  • S28 - Schottky Rectifiers (Fairchild Semiconductor)
  • S2800 - Silicon Controlled Rectifiers (Motorola)
  • S2800A - SILICON CONTROLLED RECTIFIERS (Digitron Semiconductors)
  • S2800A - Silicon Controlled Rectifiers (GE)
  • S2800A - Silicon Controlled Rectifiers (Motorola)
  • S2800B - Silicon Controlled Rectifiers (GE)
  • S2800B - Silicon Controlled Rectifiers (Motorola)
  • S2800B - SILICON CONTROLLED RECTIFIERS (Digitron Semiconductors)
  • S2800C - Silicon Controlled Rectifiers (GE)
  • S2800D - Thyristor (INCHANGE)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text
S28HS02GT, S28HS04GT, S28HL02GT, S28HL04GT 2Gb/4Gb SEMPER™ Flash Octal interface, 1.8V/3.
