SGI02N120 Datasheet - Infineon

SGI02N120 Fast IGBT in NPT-technology

SGP02N120 SGD02N120, SGI02N120 Fast IGBT in NPT-technology 40% lower Eoff compared to previous generation Short circuit withstand time 10 µs Designed for: - Motor controls - Inverter - SMPS NPT-Technology offers: - very tight parameter distribution - high ruggedness, temperature stable behaviour - parallel switching capability C G E Qualified according to JEDEC1 for target applications PG-TO-252-3-11 (D-PAK) PG-TO-220-3-1 .

SGI02N120 Datasheet (372.22 KB)

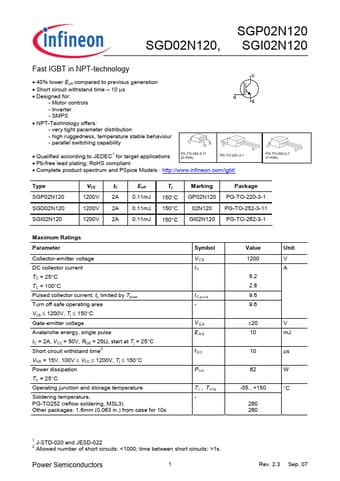

Preview of SGI02N120 PDF

Datasheet Details

Part number:

SGI02N120

Manufacturer:

Infineon ↗

File Size:

372.22 KB

Description:

Fast igbt in npt-technology.
