TDA21211 Datasheet, Drmos, Infineon

TDA21211 Features

  • Drmos
  • Intel compliant DrMOS, Power MOSFET and Driver in one package
  • For Synchronous Buck - step down voltage applications
  • Maximum Average Current of 35A

PDF File Details

Part number:

TDA21211

Manufacturer:

Infineon ↗

File Size:

467.58kb

Download:

📄 Datasheet

Description:

High-performance drmos.

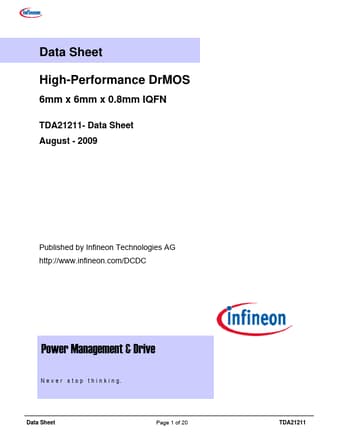

Datasheet Preview: TDA21211 📥 Download PDF (467.58kb)
Page 2 of TDA21211 Page 3 of TDA21211

TDA21211 Application

  • Applications
  • Maximum Average Current of 35A
  • Wide input voltage range +5V to +30V
  • Low power dissipation
  • Extre
