TDA21242

DC-DC Converters

TDA21242 Features

* For synchronous buck converter step down voltage applications

* Maximum average current of 25 A

* Input voltage range +4.5 V to +16 V

* Power MOSFETs rated 25 V

* Fast switching technology for improved performance at high switching frequencies (> 500 kHz)

* Remote driver di

TDA21242 General Description

3.1 Pinout TDA21242 Figure 2 Pinout, Numbering and Name of Pins (transparent top view) Data Sheet 2 TDA21242 Table 2 Pin No. 2 6 7 16

* 23 24

* 27 30 1 I/O Signals Name Pin Type Buffer Type Function PWM I +3.3 V logic PWM drive logic input The tri-state PWM input is compati.

TDA21242 Datasheet (1.32 MB)

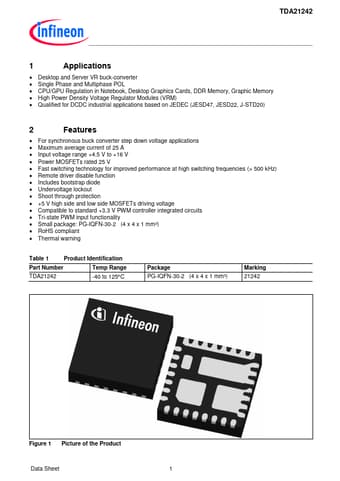

Preview of TDA21242 PDF

Datasheet Details

Part number:

TDA21242

Manufacturer:

Infineon ↗

File Size:

1.32 MB

Description:

Dc-dc converters.
TDA21242 1 Applications
* Desktop and Server VR buck-converter
* Single Phase and Multiphase POL
* CPU/GPU Regulation in Notebook, Deskto.
