TDA21310

High-Performance DrBLADE

Infineon

TDA21310 Features

* Compatible to Intel® VR12 Driver and Mosfets Module (DrMOS) functionality for Desktop/Server Applications

* For synchronous buck converter step down voltage applications

* Power MOSFETs rated 25 V for safe operation under all conditions

* Fast switching technology for improved perf

TDA21310 General Description

3.1 Pinout TDA21310 Description Pin #8 VIN Pin #7 PHASE Pin #6 BOOT Pin #5 DR_EN Pin #4 PWM Pin #3 NC Pin #2 NC Pin #1 CGND VIN Pin #9 VIN Pin #10 VIN Pin #11 VSWH Pin #12 PGND Pin #13 PGND Pin #14 PGND Pin #15 PGND Pin #16 VIN VSWH Pin #32 VCIN Pin #31 VDRV Pin #30 PGND Pin #29 VSWH Pin #28 VS.

TDA21310 Datasheet (694.96 KB)

TDA21310 Datasheet Preview — Preview of TDA21310 PDF

Datasheet Details

Part number:

TDA21310

Manufacturer:

Infineon ↗

File Size:

694.96 KB

Description:

High-performance drblade.

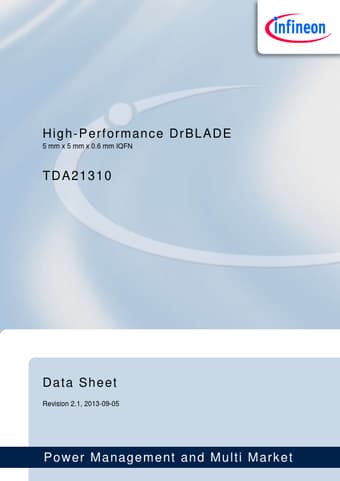

High-Performance DrBLADE 5 mm x 5 mm x 0.6 mm IQFN TDA21310 Data Sheet Revision 2.1, 2013-09-05 Power Management and Multi Market Edition 2013-09-05 .
