TDA38812 Datasheet - Infineon

TDA38812 - 12A synchronous Buck regulator

The TDA38812 is a 12 A fully integrated and highly efficient dc - dc Buck regulator.

It uses a fast Constant On-Time (COT) control scheme, which simplifies the design efforts and achieves fast transient response while maintaining excellent line and load regulation.

It can operate over a wide range o

TDA38812 Features

* Wide Input Voltage Range: 4 V to 16 V with internal bias and 2.7 V to 16 V with external VCC (3.3 V)

* Precision Reference Voltage (0.6 V +/- 0.5%)

* Stable with Ceramic Output Capacitors

* No External Compensation

* Optional Forced Continuous Conduction Mod

TDA38812-Infineon.pdf

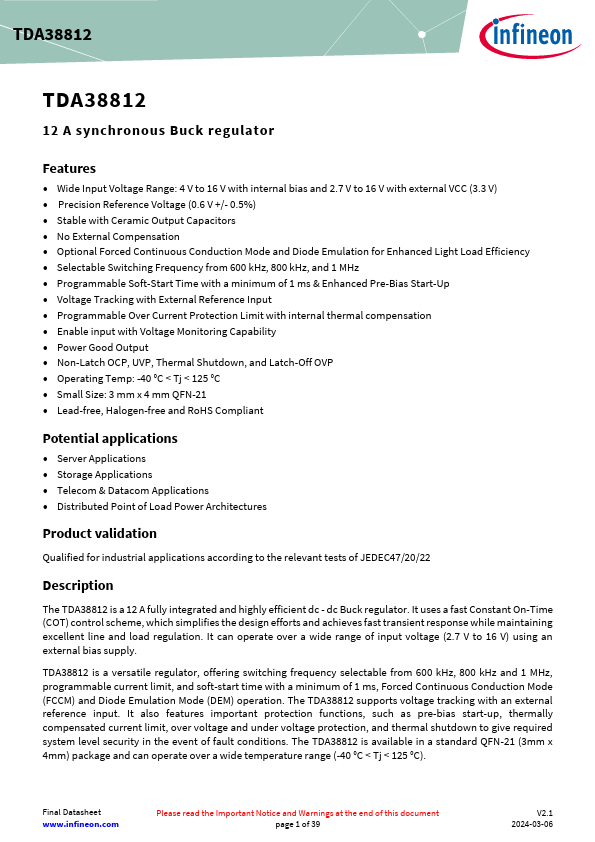

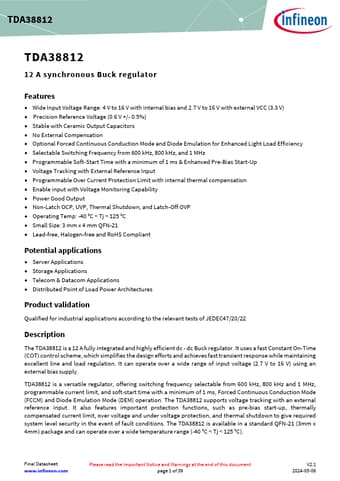

Preview of TDA38812 PDF

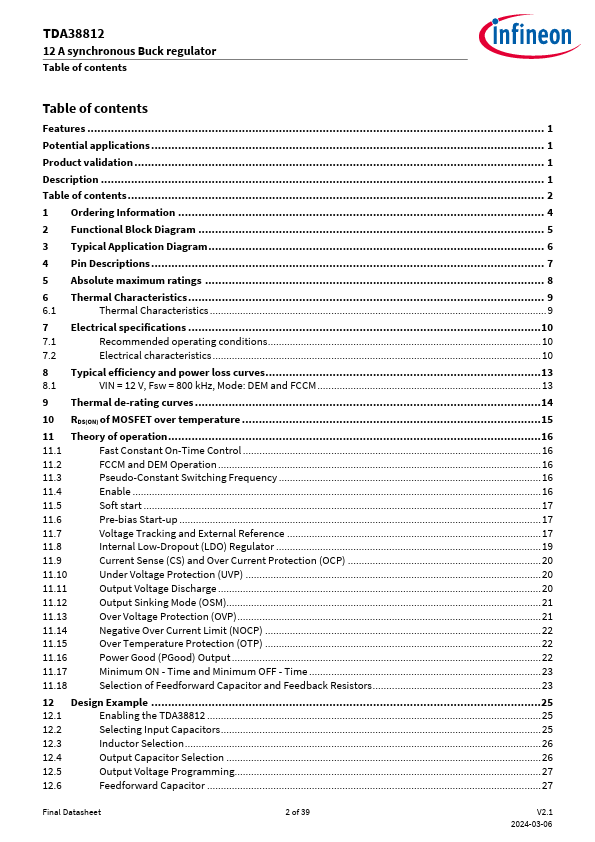

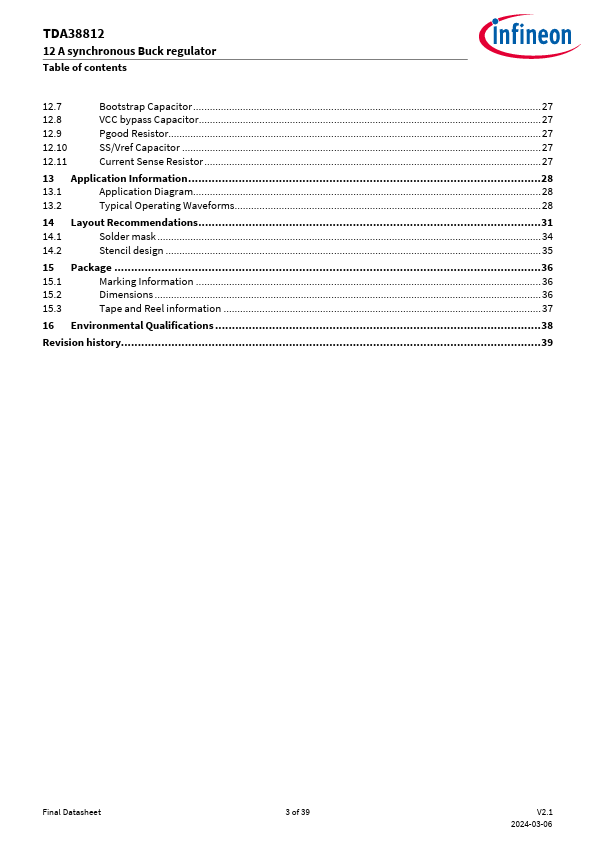

TDA38812 Datasheet Preview Page 2 TDA38812 Datasheet Preview Page 3

Datasheet Details

Part number:

TDA38812

Manufacturer:

Infineon ↗

File Size:

1.46 MB

Description:

12a synchronous buck regulator.
