TDA38840 Datasheet - Infineon

TDA38840 - 40A single-voltage synchronous Buck regulator

The TDA38840 is an easy-to-use, fully integrated dc - dc Buck regulator.

The onboard PWM controller and OptiMOS™ FETs with integrated bootstrap diode make TDA a small footprint solution, providing high- efficiency power delivery.

Furthermore, it uses a fast Constant On-Time (COT) control scheme,

TDA38840 Features

* Single 4.3 V to 17 V application or Wide Input Voltage Range from 2.0 V to 17 V with an External VCC

* Precision Reference Voltage (0.6 V +/- 0.5%)

* Enhanced Fast COT Engine Stable with Ceramic Output Capacitors

* Optional Forced Continuous Conduction Mode and Diode Emulation for

TDA38840-Infineon.pdf

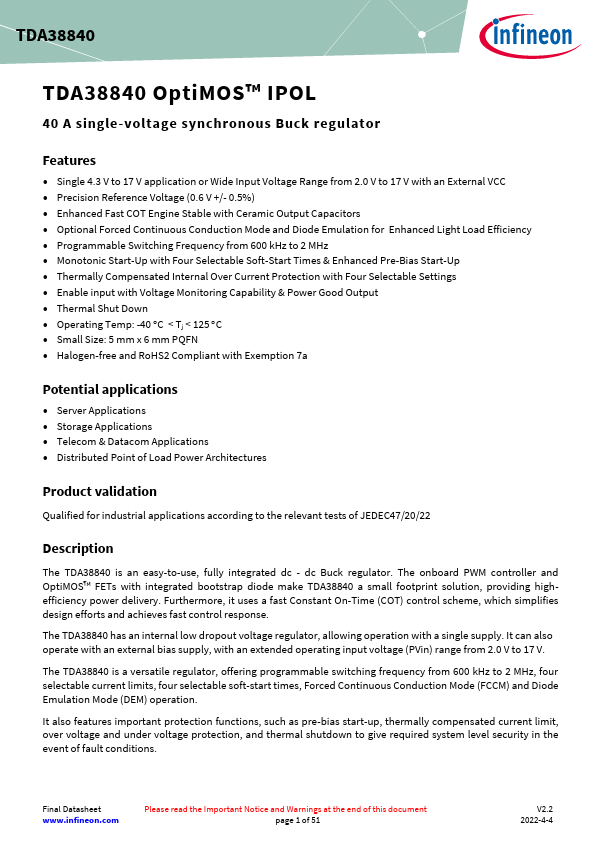

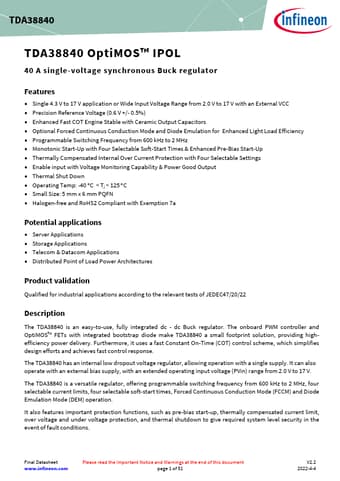

Preview of TDA38840 PDF

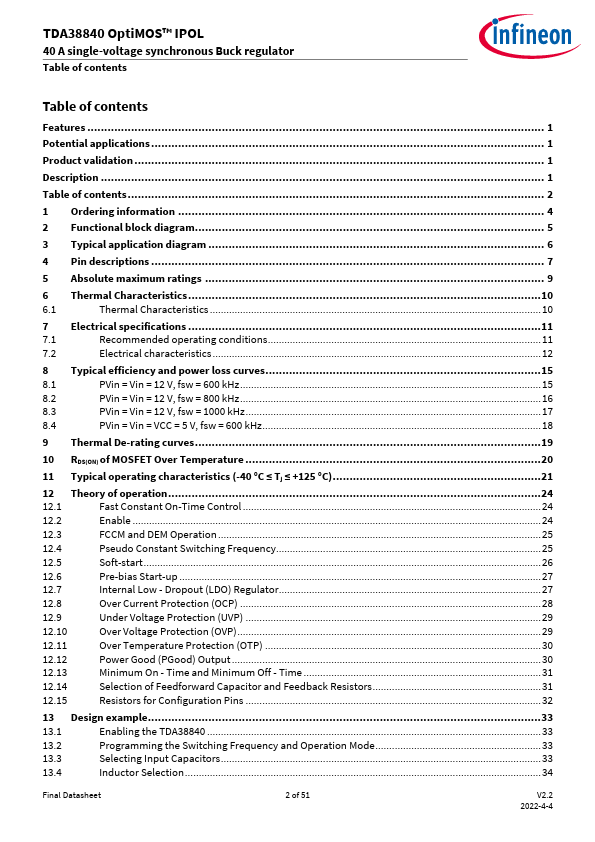

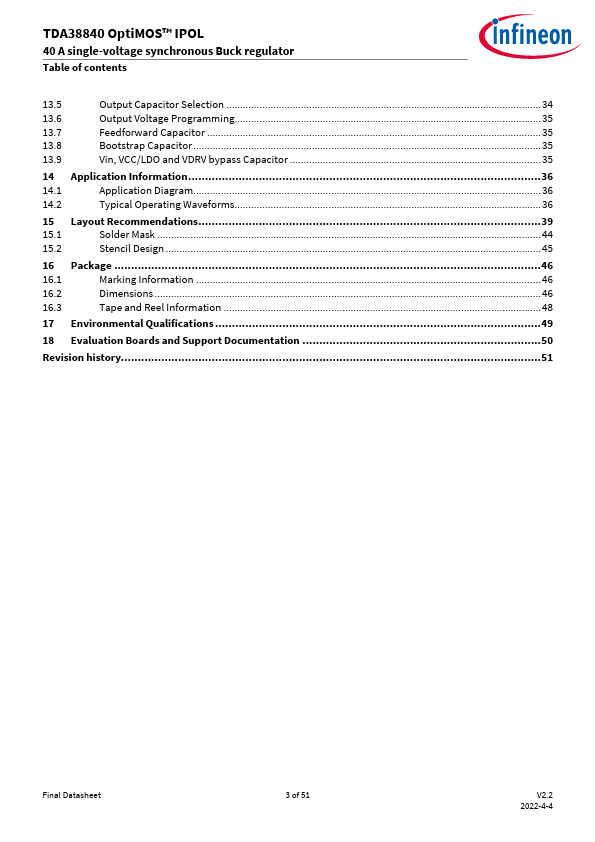

TDA38840 Datasheet Preview Page 2 TDA38840 Datasheet Preview Page 3

Datasheet Details

Part number:

TDA38840

Manufacturer:

Infineon ↗

File Size:

2.62 MB

Description:

40a single-voltage synchronous buck regulator.
