TLE4972 - high precision coreless current sensor

Infineon

TLE4972 Datasheet Preview — Preview of TLE4972 PDF

Datasheet Details

Part number	TLE4972
Manufacturer	Infineon ↗
File Size	847.88 KB
Description	high precision coreless current sensor
Datasheet	TLE4972-Infineon.pdf

TLE4972 Product details

Description

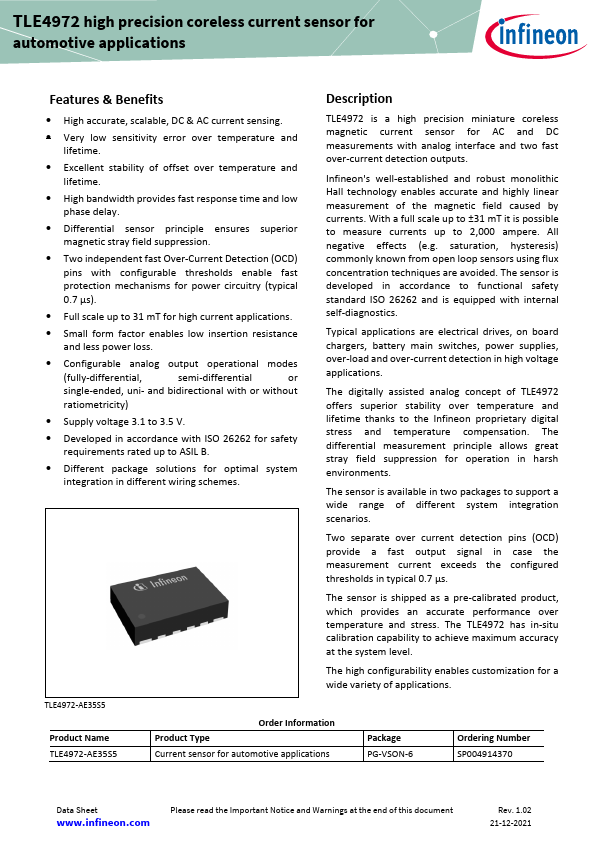

TLE4972 is a high precision miniature coreless magnetic current sensor for AC and DC measurements with analog interface and two fast over-current detection outputs.

Features

& Benefits.
High accurate, scalable, DC & AC current sensing.
Very low sensitivity error over temperature and lifetime.
Excellent stability of offset over temperature and lifetime.
High bandwidth provides fast response time and low phase delay.
Differential sensor principle ensures superior magnetic stray field suppression.
Two independent fast Over-Current Detection (OCD) pins with configurable thresholds enable fast protection me.
