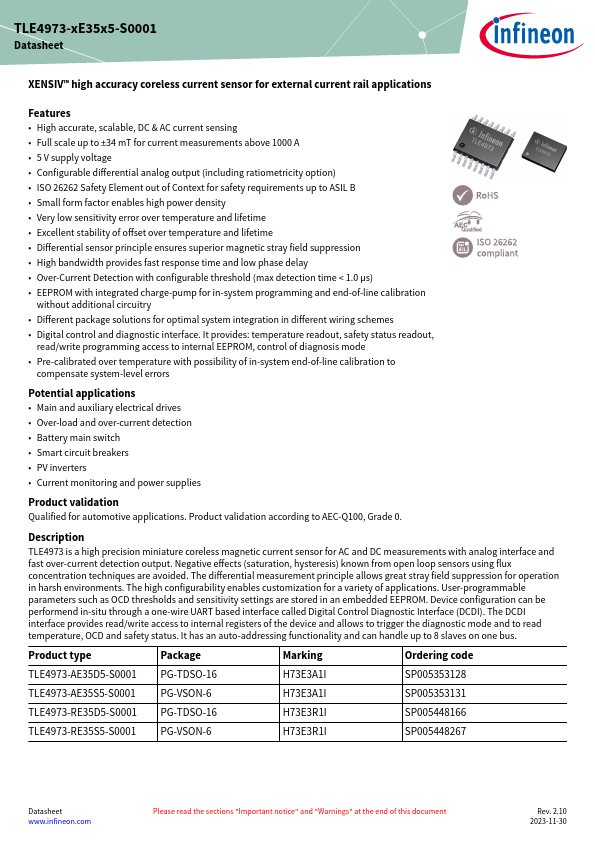

TLE4973-AE35D5-S0001 - high accuracy coreless current sensor

Infineon

TLE4973-AE35D5-S0001 Datasheet Preview — Preview of TLE4973-AE35D5-S0001 PDF

Datasheet Details

Part number	TLE4973-AE35D5-S0001
Manufacturer	Infineon ↗
File Size	918.83 KB
Description	high accuracy coreless current sensor
Datasheet	TLE4973-AE35D5-S0001-Infineon.pdf

TLE4973-AE35D5-S0001 Product details

Description

TLE4973 is a high precision miniature coreless magnetic current sensor for AC and DC measurements with analog interface and fast over-current detection output.

Features

High accurate, scalable, DC & AC current sensing.
Full scale up to ±34 mT for current measurements above 1000 A.
5 V supply voltage.
Configurable differential analog output (including ratiometricity option).
ISO 26262 Safety Element out of Context for safety requirements up to ASIL B.
Small form factor enables high power density.
Very low sensitivity error over temperature and lifetime.
Excellent stability of offset over te.
