TLE4973-R025T5-S0001, TLE4973-R120T5-S0001 Datasheet - Infineon

TLE4973-R025T5-S0001 high accuracy coreless current sensor

TLE4973 is a high precision miniature coreless magnetic current sensor for AC and DC measurements with analog interface and fast over-current detection output. Negative effects (saturation, hysteresis) known from open loop sensors using flux concentration techniques are avoided. The differential mea.

TLE4973-R025T5-S0001 Features

* High accurate, scalable, DC & AC current sensing up to ±132 A for high current applications

* 5 V supply voltage

* Configurable differential analog output (including ratiometricity option)

* ISO 26262 Safety Element out of Context for safety requirements up to ASIL

TLE4973-R120T5-S0001-Infineon.pdf

This datasheet PDF includes multiple part numbers: TLE4973-R025T5-S0001, TLE4973-R120T5-S0001. Please refer to the document for exact specifications by model.

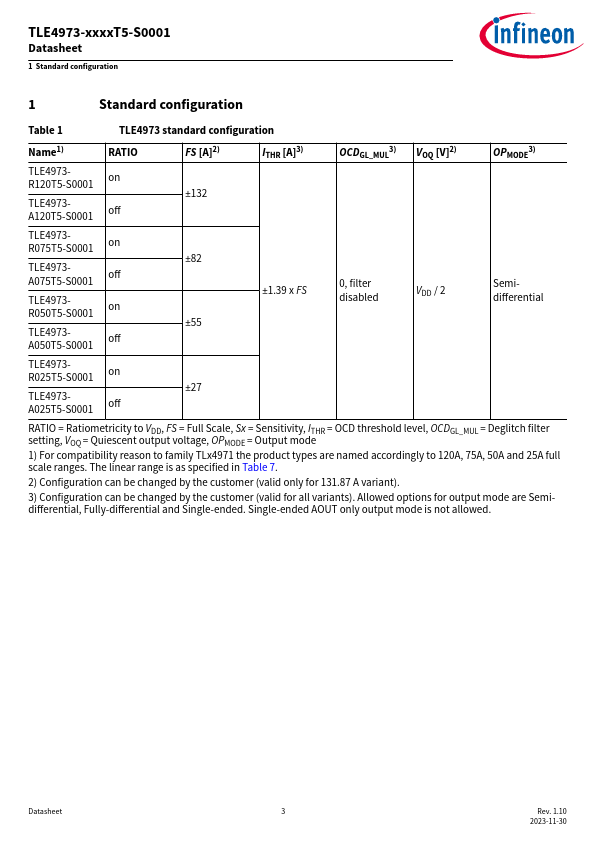

TLE4973-R025T5-S0001 Datasheet Preview Page 2 TLE4973-R025T5-S0001 Datasheet Preview Page 3

Datasheet Details

Part number:

TLE4973-R025T5-S0001, TLE4973-R120T5-S0001

Manufacturer:

Infineon ↗

File Size:

790.80 KB

Description:

High accuracy coreless current sensor.

Note:

This datasheet PDF includes multiple part numbers: TLE4973-R025T5-S0001, TLE4973-R120T5-S0001.
Please refer to the document for exact specifications by model.
