TLE4973-R025T5-U-S0010 Datasheet - Infineon

TLE4973-R025T5-U-S0010 high accuracy coreless current sensor

TLE4973 is a high precision miniature coreless magnetic current sensor for AC and DC measurements with analog interface and fast over-current detection output. Negative effects (saturation, hysteresis) known from open loop sensors using flux concentration techniques are avoided. The differential mea.

TLE4973-R025T5-U-S0010 Features

* High accurate, scalable, DC & AC current sensing up to ±132 A for high current applications

* 5 V supply voltage

* Ratiometric single-ended analog output

* ISO 26262 Safety Element out of Context for safety requirements up to ASIL B

* Integrated current rail

TLE4973-R025T5-U-S0010 Datasheet (766.80 KB)

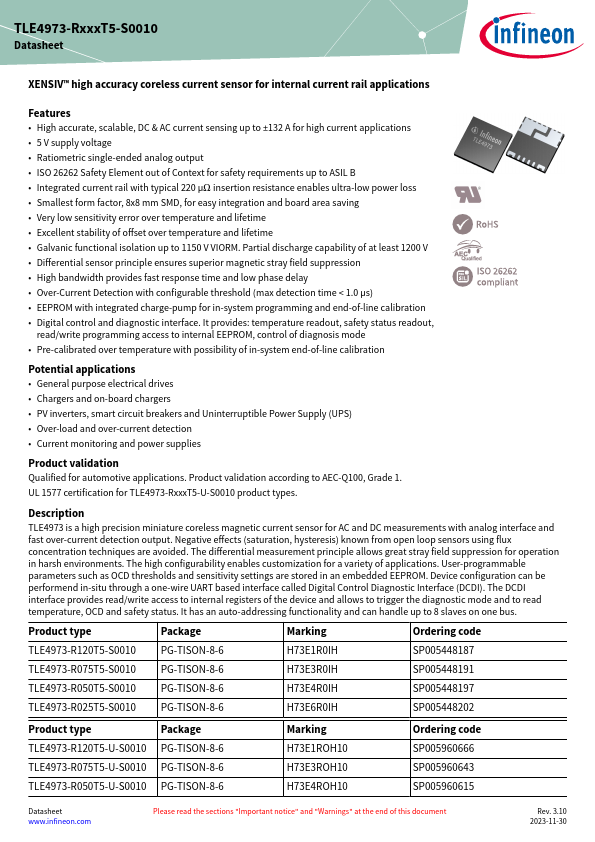

Preview of TLE4973-R025T5-U-S0010 PDF

Datasheet Details

Part number:

TLE4973-R025T5-U-S0010

Manufacturer:

Infineon ↗

File Size:

766.80 KB

Description:

High accuracy coreless current sensor.

📁 Related Datasheet

TLE4973-R025T5-S0001 high accuracy coreless current sensor (Infineon)

TLE4973-R025T5-S0010 high accuracy coreless current sensor (Infineon)

TLE4973-R050T5-S0001 high accuracy coreless current sensor (Infineon)

TLE4973-R050T5-S0010 high accuracy coreless current sensor (Infineon)

TLE4973-R050T5-U-S0010 high accuracy coreless current sensor (Infineon)

TLE4973-R075T5-S0001 high accuracy coreless current sensor (Infineon)

TLE4973-R075T5-S0010 high accuracy coreless current sensor (Infineon)

TLE4973-R075T5-U-S0010 high accuracy coreless current sensor (Infineon)

TLE4973-R120T5-S0001 high accuracy coreless current sensor (Infineon)

TLE4973-R120T5-S0010 high accuracy coreless current sensor (Infineon)

TAGS

TLE4973-R025T5-U-S0010 high accuracy coreless current sensor Infineon

Image Gallery

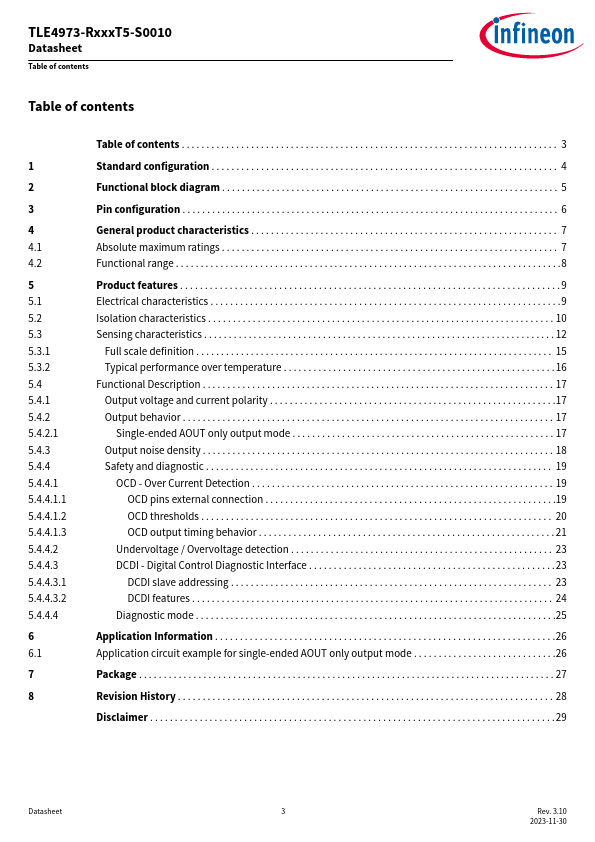

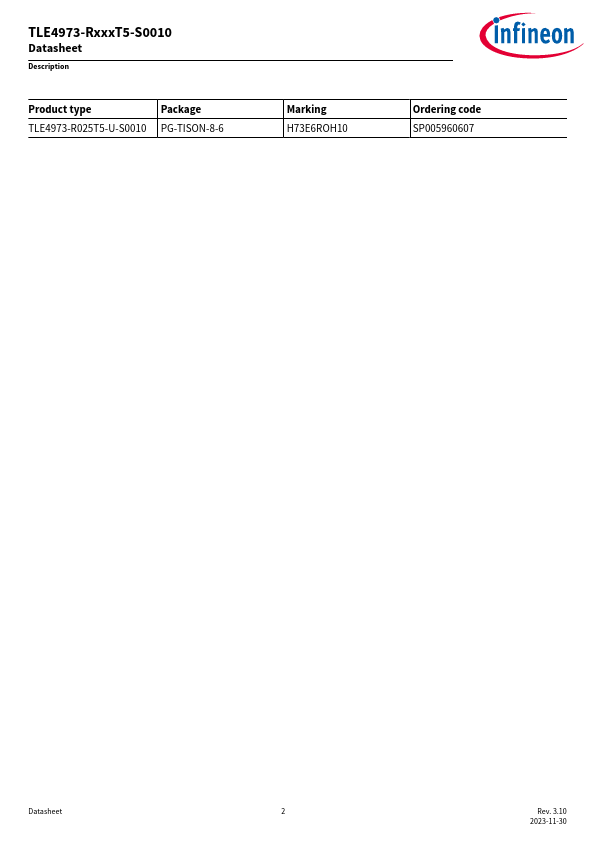

TLE4973-R025T5-U-S0010 Datasheet Preview Page 2 TLE4973-R025T5-U-S0010 Datasheet Preview Page 3
